electrown.com Log amplifiers compress large input signal ranges into smaller output voltage ranges, making them ideal for measuring signals spanning several orders of magnitude, while exponential amplifiers expand small input voltages into exponentially larger output signals, useful in applications like modulation and signal processing. Explore the rest of the article to understand how each amplifier suits different electronic circuit requirements and enhances your signal analysis.
Table of Comparison
| Feature | Log Amplifier | Exponential Amplifier |
|---|---|---|
| Function | Converts input signal to output proportional to its logarithm | Generates output proportional to the exponential of input signal |
| Application | Signal compression, dynamic range reduction, audio processing | Analog computation, signal expansion, modulation |
| Output Relation | V_out log(V_in) | V_out e^(V_in) |
| Typical Components | Diodes or transistors in feedback loop, operational amplifier | Transistors or diodes with exponential characteristics, operational amplifier |
| Input Range | Limited to positive voltage inputs to avoid undefined log | Can handle wider input range, depends on implementation |
| Linearity | Non-linear with respect to input voltage, linear in log domain | Non-linear with respect to input voltage, linear in exponential domain |
| Sensitivity | High sensitivity to small input changes at low voltages | High dynamic range, output grows rapidly with input |
| Typical Use Cases | Audio level compression, RF signal processing, measurement systems | Signal restoration, modulation, analog computation of exponentials |
Introduction to Log and Exponential Amplifiers
Log amplifiers convert input signals into their logarithmic values, providing a wide dynamic range and improved handling of signals varying over several orders of magnitude. Exponential amplifiers perform the inverse operation, generating output signals that grow exponentially based on the input, essential in applications like signal compression and nonlinear signal processing. Your choice between these amplifiers depends on whether you need to compress large input ranges or expand small input signals effectively.
Basic Operating Principles
A log amplifier converts an input signal's amplitude into a logarithmic output, leveraging the exponential current-voltage characteristics of semiconductor junctions, enabling wide dynamic range measurement. An exponential amplifier produces an output signal that grows exponentially with an input voltage, typically using an operational amplifier and transistor pair to realize this nonlinear transformation. Understanding these basic operating principles helps you select the appropriate amplifier for signal processing tasks requiring logarithmic compression or exponential expansion.
Circuit Configurations and Components
Log amplifiers typically utilize a diode or transistor in the feedback loop of an operational amplifier, relying on the logarithmic current-voltage characteristics of the semiconductor device to produce a logarithmic output proportional to the input signal amplitude. Exponential amplifiers often employ a transistor-based exponential function in their feedback or input stage, where the output voltage is an exponential function of the input voltage, commonly implemented using transistor junctions operating in the forward-active region. Key components in log amplifiers include precision operational amplifiers and temperature-compensated diodes or transistors, while exponential amplifiers require carefully biased transistors and temperature stabilization techniques to ensure accurate exponential response.
Key Differences Between Log and Exponential Amplifiers
Log amplifiers provide an output voltage proportional to the logarithm of the input signal, enabling large dynamic range compression and precise measurement of wide-ranging input amplitudes. Exponential amplifiers produce an output voltage that is the exponential function of the input, often used for signal modulation and audio synthesis where signal expansion is required. The key differences lie in their mathematical operations--log amplifiers convert multiplicative signal variations into additive outputs, while exponential amplifiers perform the inverse, expanding small input changes into larger output variations.
Mathematical Relationships and Transfer Functions
Log amplifiers produce an output voltage proportional to the logarithm of the input signal, following the transfer function V_out = K * log(V_in), where K is a constant related to the device parameters. Exponential amplifiers exhibit an output voltage that is an exponential function of the input voltage, typically described by V_out = V_0 * e^(a * V_in), with V_0 and a as scaling factors determined by circuit design. Understanding your application's required signal transformation helps determine whether a logarithmic or exponential transfer function optimally processes your input for accurate measurement or control.
Common Applications
Log amplifiers are commonly used in radio frequency (RF) signal processing, audio level compression, and instrumentation to convert a wide dynamic range of input signals into a manageable logarithmic output. Exponential amplifiers find applications in analog computation, signal modulation, and neural networks where exponential signal growth or decay is required. Your choice between the two depends on the specific signal transformation needed for accurate measurement or control in these specialized fields.
Advantages and Disadvantages
Log amplifiers offer precise measurement of wide dynamic ranges, making them ideal for signal compression and audio processing, but they suffer from temperature sensitivity and limited accuracy at low input levels. Exponential amplifiers generate an output exponentially related to the input, beneficial for applications like analog computation and sensor linearization; however, they often exhibit high distortion and require careful temperature compensation. Both amplifier types demand specific design considerations to optimize performance for the intended application.
Design Considerations
Log amplifiers require careful selection of input transistor characteristics and temperature compensation to maintain linearity over a wide dynamic range, while exponential amplifiers demand precise control of bias currents and device matching to achieve accurate exponential response. Both amplifier types necessitate minimizing noise and distortion, but exponential amplifiers are particularly sensitive to device parameter variations and thermal drift, impacting output accuracy. Your design must emphasize component stability and calibration methods tailored to the desired signal processing function.
Performance Comparison
Log amplifiers excel in dynamic range compression, providing accurate signal measurement over a wide input amplitude range, ideal for applications such as RF signal detection and audio level compression. Exponential amplifiers offer precise voltage-to-current conversion and are preferred in applications requiring exponential signal processing like analog computation and waveform generation. While log amplifiers focus on linearizing logarithmic input-output relationships, exponential amplifiers enable output current or voltage to vary exponentially with input, resulting in distinct performance profiles optimized for specific signal conditioning tasks.
Conclusion and Suitability for Various Use Cases
A log amplifier excels in compressing a wide dynamic range of input signals, making it ideal for applications like audio processing and signal strength measurement where amplitude varies significantly. Exponential amplifiers are suited for generating or recovering signals in systems requiring exponential response, such as analog computation and modulation circuits. Your choice depends on whether precise amplitude compression or exponential signal shaping aligns best with your application's requirements.

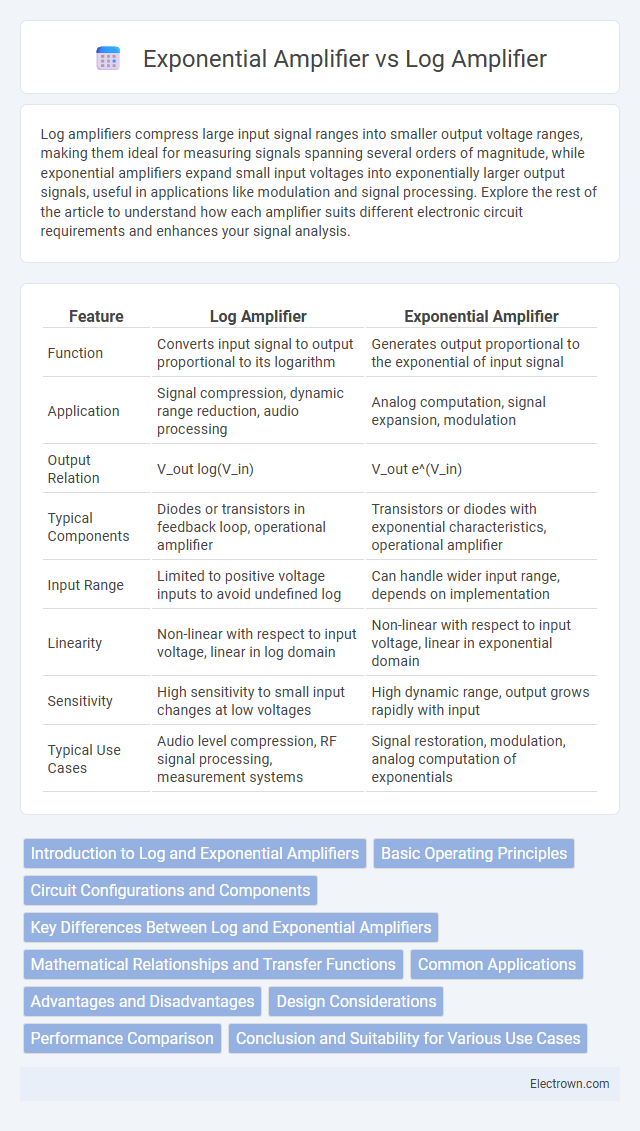

log amplifier vs exponential amplifier Infographic
