electrown.com A duplexer allows simultaneous transmission and reception on a single antenna by separating frequency bands, while a circulator directs signals sequentially between ports to prevent interference in radio systems. Explore the rest of the article to understand which device best suits your communication needs.
Table of Comparison
| Feature | Duplexer | Circulator |
|---|---|---|
| Function | Allows simultaneous transmit and receive on a single antenna by separating frequency bands. | Directs RF signals sequentially between ports in a specific rotation. |
| Ports | Typically 3 ports: Transmit, Receive, Antenna. | 3 or more ports, usually 3 ports for common circulators. |
| Usage | Common in duplex communication systems like radios and cellular devices. | Used in radar, microwave systems, and signal routing. |
| Isolation | High isolation between transmit and receive paths based on frequency filtering. | High isolation between ports due to non-reciprocal magnetics. |
| Operating Principle | Frequency-based filtering using resonators or acoustic waves. | Employs ferrite materials and magnetic biasing for non-reciprocal behavior. |
| Frequency Range | Narrowband, optimized for specific frequency bands. | Broadband capability depending on design. |
| Size and Cost | Generally compact and lower cost. | Larger and more expensive due to magnetic components. |
Introduction to Duplexers and Circulators
Duplexers and circulators are essential RF components used to manage signal flow in communication systems by directing transmitted and received signals efficiently. A duplexer allows simultaneous transmission and reception on a single antenna, separating the frequency bands to minimize interference. Circulators, typically three-port devices, route signals sequentially from one port to the next, optimizing isolation and signal direction for applications like radar and antenna arrays.
Basic Definitions: Duplexer vs Circulator
A duplexer is a radio frequency device that allows a transmitter and receiver to share a single antenna by isolating the transmitted and received signals, enabling simultaneous two-way communication. A circulator is a passive, non-reciprocal, multi-port device that routes signals sequentially from one port to the next in a single direction, commonly used for isolating signals in radar and communication systems. Both components are essential in RF and microwave systems but serve distinct roles: duplexers primarily manage bidirectional signal flow on a shared antenna, while circulators direct signal paths between multiple ports to prevent interference.
Fundamental Operating Principles
A duplexer operates by using frequency-selective filters to separate transmitted and received signals, allowing simultaneous two-way communication through a single antenna. In contrast, a circulator employs non-reciprocal microwave components, such as ferrite materials, to direct signals sequentially from one port to the next in a unidirectional loop, minimizing signal interference. These fundamental operating principles distinguish duplexers as frequency-based devices and circulators as phase-manipulating components in RF systems.
Key Components and Construction
Duplexers commonly consist of bandpass filters and resonators designed to separate transmit and receive signals within a shared antenna system, using acoustic or cavity filter technologies to enhance frequency selectivity. Circulators incorporate non-reciprocal ferrite materials arranged with magnets to direct signal flow sequentially between ports, enabling isolation among transmitter, antenna, and receiver paths. The compact construction of duplexers emphasizes filter integration for duplex communication, while circulators rely on magnetic bias and ferrite elements to manage signal directionality without filtering.
Signal Flow and Isolation Differences
Duplexers utilize frequency-selective filters to separate transmit and receive signals, allowing simultaneous bi-directional communication on a single antenna with high isolation between paths. Circulators employ non-reciprocal ferrite materials to route signals directionally between three or more ports, ensuring minimal signal loss and isolation by directing energy from transmitter to antenna and from antenna to receiver without interference. The key difference lies in duplexers operating based on frequency bands while circulators rely on directional signal flow, affecting their isolation mechanisms and application suitability.
Common Applications in RF Systems
Duplexers are commonly used in cellular base stations and radio transceivers to enable simultaneous transmission and reception on a single antenna by isolating the transmitter and receiver frequencies. Circulators find widespread use in radar systems and satellite communications to route signals between antennas, transmitters, and receivers without interference. Both components enhance RF system efficiency by managing signal flow and minimizing signal loss or reflection in complex communication setups.
Advantages of Duplexers
Duplexers enable simultaneous transmission and reception over a single antenna, reducing system complexity and overall equipment costs compared to circulators. They provide excellent isolation between transmitter and receiver paths, minimizing interference and improving signal quality in communication systems. Your network performance benefits from duplexers' adaptability in frequency-selective environments, making them ideal for modern radio and wireless applications.
Advantages of Circulators
Circulators provide superior isolation between ports, minimizing signal interference and improving system performance in RF and microwave applications. Their ability to efficiently route signals in a unidirectional manner enhances the protection of sensitive components, making them ideal for duplex communication systems. You benefit from reduced insertion loss and better handling of high power levels compared to duplexers, ensuring more reliable and efficient signal transmission.
Choosing Between Duplexer and Circulator
Choosing between a duplexer and a circulator depends on the specific radio frequency (RF) application requirements, such as frequency range, isolation, and insertion loss. Duplexers are ideal for TDD systems where transmit and receive signals share the same antenna but alternate in time, offering high isolation and low insertion loss within narrow frequency bands. Circulators excel in full-duplex systems by directing signals in multiple ports simultaneously, providing broader frequency coverage with moderate isolation and minimal signal degradation.
Summary and Recommendations
A duplexer enables simultaneous transmission and reception on a single antenna by isolating transmitted and received signals, making it ideal for full-duplex communication systems. A circulator directs signals sequentially between ports, offering low insertion loss and high isolation but generally requires multiple antennas or more complex setups. For Your application, choose a duplexer for compact, integrated designs requiring efficient isolation; select a circulator when minimal signal loss and flexible routing among multiple ports are priorities.

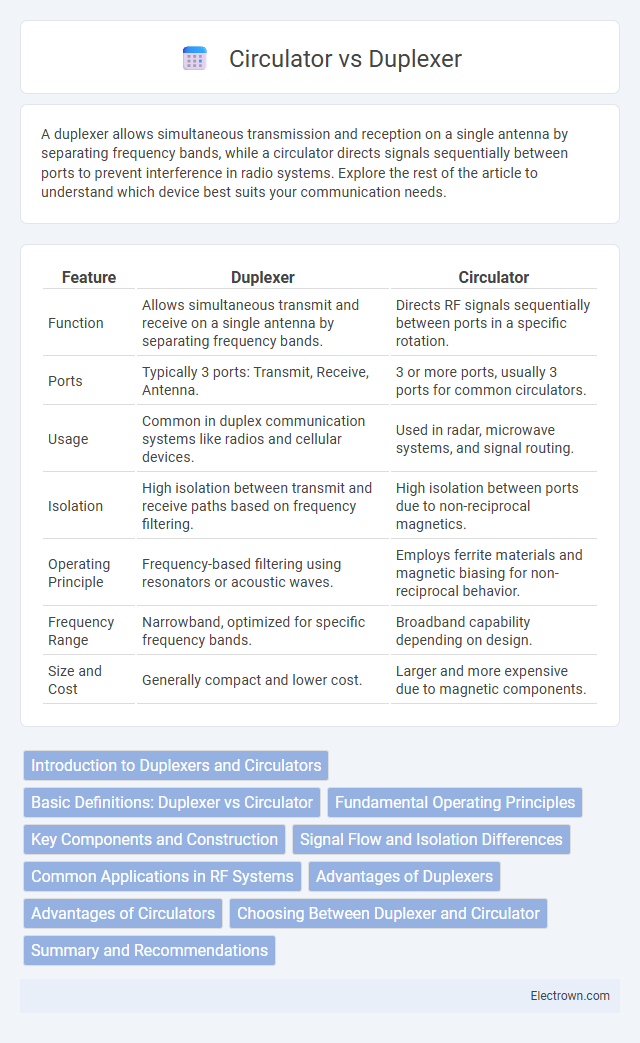

Duplexer vs circulator Infographic
