electrown.com Memory-mapped I/O uses the same address space for both memory and device registers, allowing the CPU to access peripherals through standard memory instructions, whereas port-mapped I/O employs a separate address space with dedicated instructions for device communication. Understanding these differences can help you optimize system design and performance; explore the rest of the article to learn more about their advantages, drawbacks, and practical applications.
Table of Comparison
| Feature | Memory-mapped I/O | Port-mapped I/O |
|---|---|---|
| Address Space | Shares the same address space as memory | Uses a separate address space called I/O ports |
| Access Method | Accessed like regular memory using standard instructions | Accessed using special I/O instructions (e.g., IN, OUT) |
| Instruction Set | No special instructions needed | Requires dedicated I/O instructions |
| Speed | Generally faster due to single unified address space | Potentially slower due to separate instruction overhead |
| Hardware Complexity | More complex hardware decoding because memory space is shared | Simpler hardware design with separate I/O address decoding |
| Programming Ease | Easier for direct memory-based operations | Requires awareness of I/O port instructions |
| Example Architectures | ARM, MIPS | x86 (supports both, but port-mapped is traditional) |
Introduction to Input/Output (I/O) in Computing
Input/Output (I/O) in computing facilitates communication between the central processing unit (CPU) and peripheral devices, crucial for system functionality. Memory-mapped I/O assigns specific memory addresses to I/O devices, enabling direct access via standard memory instructions, while port-mapped I/O utilizes a separate address space with dedicated CPU instructions for device communication. Your choice between these methods impacts system design, performance, and programming complexity in embedded and general-purpose computing environments.
What is Memory-Mapped I/O?
Memory-Mapped I/O is a method where device control registers are mapped into the system's address space, allowing the CPU to interact with hardware using standard memory instructions. This technique enables efficient data transfer and unified addressing between memory and peripheral devices. Your system can access I/O devices as if they were part of the main memory, simplifying programming and increasing performance.
What is Port-Mapped I/O?
Port-Mapped I/O (PMIO) is a method of communication between the CPU and peripheral devices using a separate address space dedicated exclusively to I/O ports, distinct from the main memory address space. This allows specific CPU instructions, such as IN and OUT in x86 architecture, to directly read from or write to hardware ports, facilitating efficient device control. Your system benefits from PMIO by isolating device communication, reducing potential memory conflicts and improving hardware interaction performance.
Key Differences Between Memory-Mapped and Port-Mapped I/O
Memory-mapped I/O uses the same address space for both memory and I/O devices, allowing your CPU to access peripherals with standard memory instructions, whereas port-mapped I/O employs separate address spaces and special CPU instructions for I/O operations. Memory-mapped I/O enables direct data transfer and simplifies programming by treating device registers as memory locations, while port-mapped I/O isolates device access, potentially improving control and security. The choice between these methods affects system design, addressing schemes, and performance in embedded and computer systems.
Memory-Mapped I/O: Advantages and Disadvantages
Memory-mapped I/O allows peripherals to be addressed using the same address space as the system memory, enabling faster data access and simplified programming through standard instructions. It offers advantages such as seamless integration with the CPU, easier access to large data blocks, and efficient use of the processor's instruction set. However, it can consume valuable address space and may complicate memory management, especially in systems with limited addressing capability.
Port-Mapped I/O: Benefits and Limitations
Port-mapped I/O (PMIO) uses a separate address space for device communication, which simplifies CPU instructions by distinguishing I/O operations from memory accesses, enhancing system control and security. This isolation allows precise addressing of I/O devices with dedicated CPU instructions like IN and OUT, leading to efficient and streamlined data transfers. However, PMIO is limited by a smaller, fixed address space and added complexity for hardware design compared to memory-mapped I/O, restricting scalability and integration flexibility.
Performance Implications of I/O Mapping Methods
Memory-mapped I/O offers faster data transfer by allowing the CPU to use standard load/store instructions to access I/O devices, reducing instruction overhead compared to port-mapped I/O, which requires specialized I/O instructions. The larger address space in memory-mapped I/O enables more flexible and efficient device interaction, while port-mapped I/O's limited address range can cause bottlenecks in high-throughput systems. However, memory-mapped I/O may consume valuable address space and increase cache pollution, impacting overall system performance in scenarios with intensive I/O operations.
Hardware and Software Considerations
Memory-mapped I/O integrates hardware device registers into the system's address space, allowing standard CPU instructions to access peripherals, which simplifies software programming but requires careful memory allocation to avoid conflicts. Port-mapped I/O uses separate address spaces accessed via dedicated CPU instructions like IN and OUT, enabling hardware designs to isolate I/O operations but often necessitating specialized software routines and increased complexity. Hardware implementation of memory-mapped I/O benefits from direct bus access and unified addressing, while port-mapped I/O offers simpler hardware decoders at the cost of additional software handling for explicit port communication.
Use Cases and Real-World Examples
Memory-mapped I/O is extensively used in embedded systems and modern microprocessors such as ARM and x86 architectures, where peripherals are mapped to the same address space as memory, enabling efficient and fast access via standard CPU instructions; for example, GPU registers and RAM buffers in graphics cards utilize memory-mapped I/O. Port-mapped I/O remains prevalent in legacy systems and specific microcontrollers like Intel's x86 family, where dedicated I/O instructions (IN and OUT) access hardware ports, commonly found in traditional PC architectures for keyboard controllers and serial ports. Real-world examples include network interface cards leveraging memory-mapped I/O for high-throughput data transfer, whereas port-mapped I/O is often used for simple devices requiring isolated, low-latency access such as programmable peripheral interface chips.
Conclusion: Choosing the Right I/O Mapping Technique
When deciding between memory-mapped I/O and port-mapped I/O, consider the system architecture and application needs. Memory-mapped I/O offers faster data access by allowing the CPU to treat I/O devices as regular memory locations, enhancing performance in complex systems. Your choice should align with hardware compatibility, software complexity, and required speed to optimize overall system efficiency.

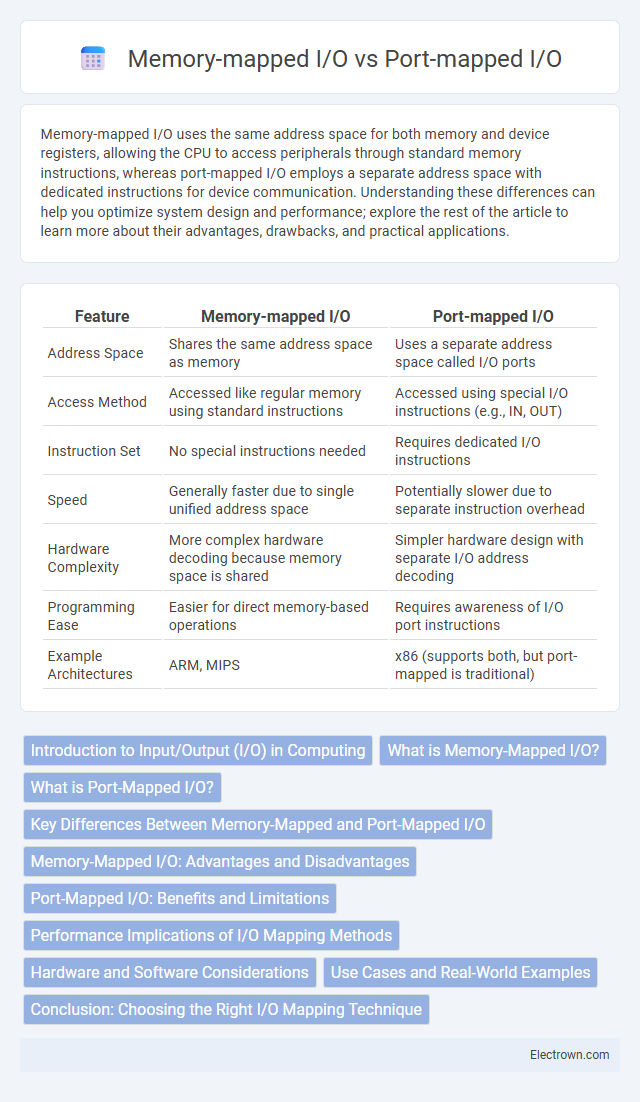

Memory-mapped I/O vs port-mapped I/O Infographic
