electrown.com In-System Programming (ISP) allows programming of microcontrollers directly within the embedded system without removing the chip, enhancing convenience during development and updates. Understanding the differences between ISP and In-Application Programming (IAP) can optimize Your firmware update strategies; explore the article to learn more.
Table of Comparison
| Feature | In-System Programming (ISP) | In-Application Programming (IAP) |
|---|---|---|
| Definition | Programming microcontrollers externally after PCB assembly. | Programming firmware internally during application runtime. |
| Programming Location | External interface (e.g., JTAG, SPI). | Within the running application on the microcontroller. |
| Usage Scenario | Initial device programming, firmware updates before deployment. | Firmware upgrades or configuration changes in the field. |
| Programming Speed | Generally faster due to dedicated programming tools. | Slower, as it uses application resources during operation. |
| Hardware Requirements | Requires external programmer and dedicated hardware pins. | No additional hardware needed beyond the microcontroller. |
| Risk Level | Lower risk of system crashes during programming. | Higher risk, potential for bricking if power is lost mid-update. |
| Complexity | Simpler process controlled by external tools. | More complex software implementation on the microcontroller. |
| Typical Applications | Mass production, prototyping phases. | Remote updates, feature additions, user customization. |
Introduction to In-System and In-Application Programming
In-System Programming (ISP) enables programming or reprogramming of a microcontroller or programmable device directly within the system environment, eliminating the need to remove the chip for firmware updates. In-Application Programming (IAP) allows your device to update its firmware internally while the application is running, facilitating dynamic code modification without external hardware. Both techniques optimize device maintenance and upgrade processes, enhancing flexibility and reducing downtime in embedded systems.
Core Concepts: What Is In-System Programming (ISP)?
In-System Programming (ISP) enables programming or reprogramming of microcontrollers and memory devices directly within the hardware system without removing the chip from the circuit. ISP uses dedicated communication protocols such as SPI, JTAG, or UART to write data, allowing firmware updates or bug fixes while the device remains operational. Your ability to perform ISP streamlines development cycles and enhances product maintenance efficiency by eliminating the need for external programmers.
Defining In-Application Programming (IAP)
In-Application Programming (IAP) allows firmware updates directly within the running system without needing external programming tools, enhancing flexibility and reducing downtime. IAP typically uses reserved memory space for update storage, enabling the device to write new code while maintaining system operation. Your embedded system benefits from seamless updates and improved reliability through this integrated programming method.
Key Differences Between ISP and IAP
In-System Programming (ISP) enables programming or updating of a microcontroller's memory directly through the hardware interface without removing the chip from the system, allowing firmware changes during manufacturing or field updates. In-Application Programming (IAP) allows the microcontroller to reprogram its own memory while the application runs, providing flexibility for dynamic firmware updates or data storage without external tools. Your choice between ISP and IAP depends on factors like update frequency, system accessibility, and real-time operation requirements.
Typical Use Cases for ISP
In-System Programming (ISP) is commonly used for initial firmware loading and updating devices directly on the production line or in the field without removing the microcontroller from the circuit. It enables rapid debugging and modification during development phases and facilitates secure firmware upgrades in embedded systems, such as automotive ECUs or consumer electronics. ISP is preferred for scenarios requiring minimal hardware disruption and efficient mass production programming.
Typical Use Cases for IAP
In-Application Programming (IAP) is commonly utilized for firmware updates without removing the device from its operational environment, enabling seamless patches and feature enhancements in embedded systems such as microcontrollers and IoT devices. Typical use cases include remote firmware upgrades, real-time bug fixes, and calibration adjustments while the application remains active. IAP facilitates maintaining system uptime and reduces maintenance costs compared to In-System Programming (ISP), which generally requires device disconnection and external programming tools.
Hardware Requirements: ISP vs IAP
In-System Programming (ISP) requires dedicated hardware interfaces such as JTAG or SPI connectors, facilitating direct access to the microcontroller's memory without removing it from the circuit. In-Application Programming (IAP) relies on the existing application firmware and internal bootloader, minimizing additional hardware needs but demanding sufficient on-chip resources and memory management capabilities. Understanding these hardware requirements helps you determine the best method based on your device's design constraints and update flexibility.
Security Considerations for Both Methods
In-System Programming (ISP) and In-Application Programming (IAP) both require robust security measures to prevent unauthorized access and code tampering during firmware updates. ISP often relies on secure bootloaders and encrypted communication channels to safeguard the programming interface, while IAP enhances security by enabling updates from within the running application, necessitating stringent authentication and integrity verification processes. Implementing cryptographic signatures and secure key management is critical in both methods to mitigate risks such as firmware hijacking and unauthorized reprogramming.
Pros and Cons of ISP vs IAP
In-System Programming (ISP) enables direct programming of microcontrollers without removing them from the circuit, offering convenience and time-saving during development but may require specialized hardware and pose risks of corrupting existing firmware. In-Application Programming (IAP) allows updating firmware while the device is running, providing flexibility for remote updates and bug fixes but can introduce complexity in managing memory and ensuring system stability during the process. Your choice between ISP and IAP should consider factors like ease of access, risk tolerance, and the need for live updates in your embedded system.
Choosing the Right Programming Method for Your Application
Selecting the optimal programming method depends on your application's complexity and update requirements; In-System Programming (ISP) allows direct programming of microcontrollers via hardware interfaces, ideal for initial device setup and debugging. In contrast, In-Application Programming (IAP) enables firmware updates while the system is operational, providing flexibility and minimizing downtime for applications requiring frequent or remote updates. Evaluating factors such as hardware accessibility, system uptime, and update frequency ensures the right approach to efficient and secure firmware management.

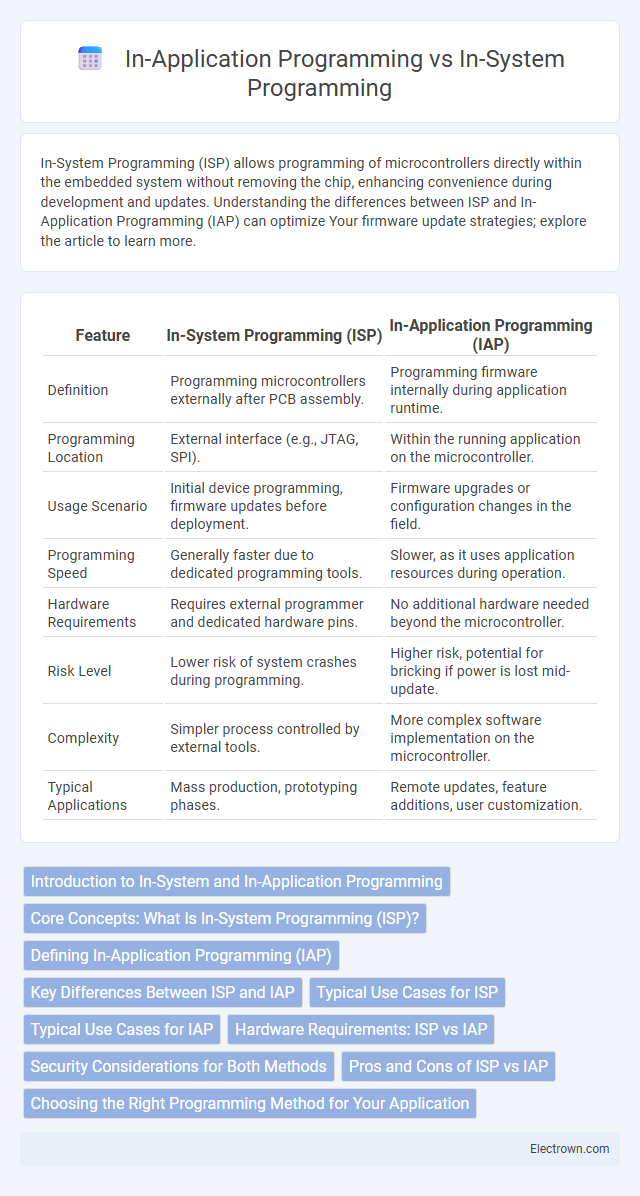

In-System Programming vs In-Application Programming Infographic
