electrown.com Bit-banding offers a precise method to manipulate individual bits within a register by mapping each bit to a unique address, ensuring atomic operations without altering other bits. Understanding the differences between bit-banding and direct register access is crucial for optimizing your embedded system's performance; explore the rest of the article to learn more about their applications and advantages.
Table of Comparison
| Feature | Bit-Banding | Direct Register Access |
|---|---|---|
| Definition | Atomic bit manipulation via alias region addressing. | Accessing peripheral registers directly via memory-mapped addresses. |
| Operation | Maps individual bits to 32-bit words for atomic set/clear. | Reads/writes entire register values or bit fields. |
| Atomicity | Atomic, prevents race conditions without disabling interrupts. | Non-atomic, may require masking or interrupt handling. |
| Complexity | Requires bit-band region setup and alias calculation. | Simple pointer dereference with bit masking. |
| Performance | Efficient atomic bit access, minimal overhead. | Fast, but atomicity must be manually ensured. |
| Use Case | Critical bit-level control in concurrent environments. | General register read/write operations. |
| MCU Support | Available on ARM Cortex-M3/M4 and some Cortex-M0+ chips. | Universal across MCU architectures. |
Introduction to Bit-Banding and Direct Register Access
Bit-banding is a memory-mapping technique that allows atomic bit-level manipulation by mapping each bit in a peripheral or SRAM region to a separate word in an alias region, enabling efficient and interrupt-safe bit access. Direct register access involves reading or writing entire registers using standard memory instructions, which can result in read-modify-write cycles when manipulating individual bits. Your choice between bit-banding and direct register access depends on the need for atomic bit operations and the microcontroller architecture, such as ARM Cortex-M series supporting bit-banding.
Understanding Microcontroller Memory Architecture
Bit-banding provides a powerful technique for atomic bit manipulation by mapping individual bits in SRAM or peripheral registers to a separate address space, enabling direct bit-level access without read-modify-write cycles. Direct register access involves reading or writing entire 32-bit hardware registers, requiring careful masking and shifting when modifying specific bits to avoid unintended side effects. Understanding microcontroller memory architecture is crucial for optimizing performance and ensuring reliable operations in embedded systems when choosing between bit-banding and direct register access.
What is Bit-Banding?
Bit-banding is a memory-mapping technique used in ARM Cortex-M microcontrollers that allows you to access individual bits in a peripheral or SRAM region as if they were separate 32-bit words. This method improves atomicity and simplifies bit manipulation by mapping each bit in a bit-band region to a corresponding word in the bit-band alias region. Using bit-banding ensures efficient and precise control over hardware registers without the need for read-modify-write cycles common in direct register access.
What is Direct Register Access?
Direct Register Access involves reading from or writing to hardware registers using their specific memory addresses, enabling efficient manipulation of microcontroller peripherals without the overhead of additional abstraction layers. This method allows precise control over individual bits or entire registers, but requires careful handling to avoid unintended side effects due to simultaneous bit modifications. Compared to bit-banding, Direct Register Access operates directly on the peripheral registers, making it faster but less granular, requiring explicit bit masking and shifting for specific bit manipulation.
Key Differences Between Bit-Banding and Direct Register Access
Bit-banding allocates a separate alias region for each individual bit in a memory word, allowing atomic bit-level manipulation without affecting other bits, whereas direct register access modifies entire registers or specific bits using masks and bitwise operations. Bit-banding provides safer concurrency in multi-threaded environments by preventing race conditions during bit manipulation, while direct register access offers faster execution with lower overhead but requires careful handling to avoid unintended bit changes. The choice depends on application requirements for atomicity, performance, and code complexity in embedded system programming.
Performance Comparison: Speed and Efficiency
Bit-banding offers faster and more efficient access to individual bits by mapping them to separate memory addresses, enabling atomic bit manipulation without read-modify-write cycles. Direct register access, while simpler, often requires multiple instructions to isolate and modify specific bits, leading to slower execution and potential data hazards. You can maximize performance in time-critical applications by choosing bit-banding for single-bit operations and direct register access for bulk register manipulation.
Memory Usage and Resource Allocation
Bit-banding enhances memory efficiency by mapping individual bits in peripheral or SRAM regions to a separate alias region, allowing atomic bit manipulation without additional instructions or temporary variables. Direct register access requires reading and modifying the entire register value, which can consume more CPU cycles and registers for masking and shifting operations, leading to higher resource usage during bit-level updates. Consequently, bit-banding optimizes resource allocation by reducing code complexity and increasing execution speed, particularly in embedded systems with limited memory and processing power.
Code Simplicity and Maintainability
Bit-banding simplifies code by enabling single-bit manipulation through alias addresses, reducing the need for complex masking and shifting operations. Direct register access involves manual bitwise operations, which can increase code complexity and the potential for errors, making maintainability more challenging. Using bit-banding, Your code becomes clearer and easier to maintain, especially in large projects with frequent bit-level control requirements.
Use Cases: When to Use Each Method
Bit-banding offers precise control over individual bits, making it ideal for applications requiring atomic bit manipulation in real-time embedded systems and interrupt handling. Direct register access provides faster access to entire registers, suitable for bulk data operations and scenarios demanding higher throughput. Your choice depends on whether you need fine-grained bit control or speed for accessing multiple bits simultaneously.
Conclusion: Choosing the Right Approach
Choosing between bit-banding and direct register access depends on your application's need for atomic operations and code readability. Bit-banding ensures atomicity and simplifies bit manipulation by mapping individual bits to separate addresses, ideal for real-time systems requiring concurrency safety. Direct register access provides faster execution and lower memory usage, making it suitable when performance is critical and atomicity is not a concern.

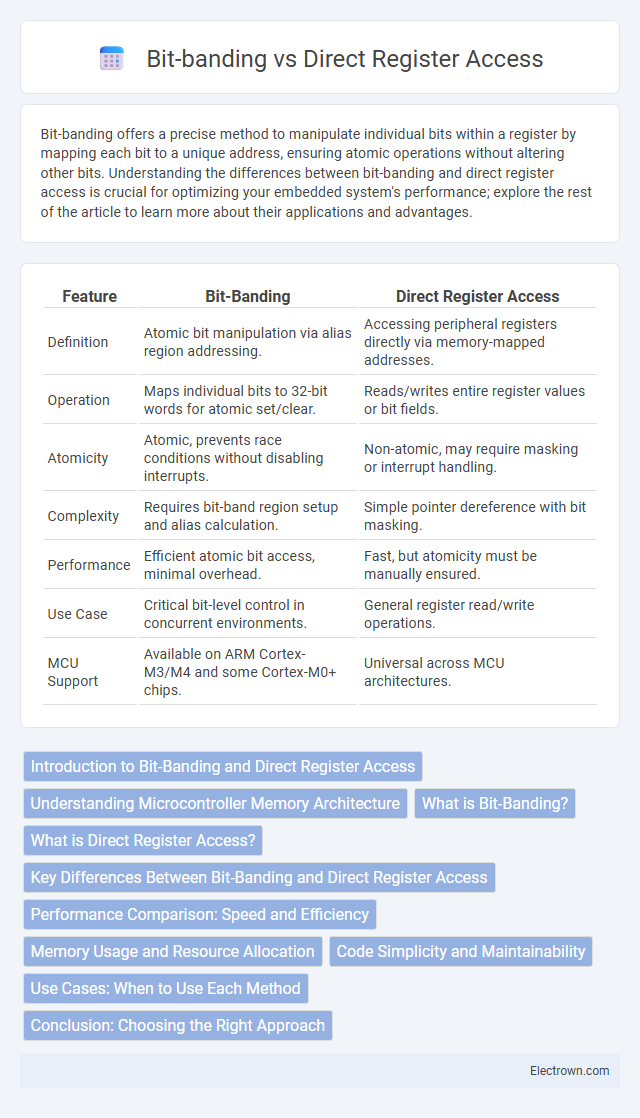

Bit-banding vs direct register access Infographic
