electrown.com Distributed feedback (DFB) lasers provide stable single-wavelength output with a built-in grating that acts as a distributed reflector, ensuring narrow linewidth and low noise ideal for high-speed communication. DBR lasers, on the other hand, use discrete Bragg reflectors at the cavity ends for wavelength selection, offering tunability but generally larger linewidth; explore the full comparison to determine which laser fits your application needs.
Table of Comparison
| Feature | Distributed Feedback (DFB) Laser | Distributed Bragg Reflector (DBR) Laser |
|---|---|---|
| Structure | Grating integrated within the gain region | Grating outside the gain region, in reflector sections |
| Wavelength Stability | High wavelength stability with single longitudinal mode | Moderate wavelength stability, mode selection via external reflector |
| Linewidth | Narrow linewidth (typically <1 MHz) | Wider linewidth compared to DFB |
| Output Power | Moderate output power | Potentially higher output power |
| Tuning Capability | Limited tuning range | Greater tunability due to separate grating sections |
| Applications | High-speed fiber-optic communication, sensing | Telecommunications, tunable laser sources |
| Manufacturing Complexity | Complex due to grating integration | Moderate complexity with separate grating sections |
Introduction to DFB and DBR Lasers
Distributed feedback (DFB) lasers integrate a periodic grating within the active region to provide wavelength-selective optical feedback, ensuring stable single-mode operation essential for telecommunications. Distributed Bragg reflector (DBR) lasers use separate Bragg gratings outside the gain region to reflect specific wavelengths, enabling precise control over lasing wavelength with low threshold currents. Both DFB and DBR lasers are critical in fiber-optic communication systems, offering high spectral purity and narrow linewidths optimized for long-distance data transmission.
Basic Operating Principles
Distributed feedback (DFB) lasers use a periodic grating structure integrated within the active region to provide wavelength-selective feedback, enabling single-mode laser operation with narrow linewidth. Distributed Bragg reflector (DBR) lasers separate the grating structure from the active region, where the Bragg grating acts as an external reflector to define the lasing wavelength. Both designs utilize Bragg scattering principles, but DFB lasers achieve feedback along the gain medium, whereas DBR lasers rely on external feedback elements for wavelength discrimination.
Structural Differences
Distributed feedback (DFB) lasers feature a periodic grating structure integrated within the active layer, providing distributed optical feedback along the entire length of the laser cavity. Distributed Bragg reflector (DBR) lasers, however, have separate Bragg reflector gratings positioned outside the active gain region, defining the cavity ends and providing wavelength-selective feedback. The key structural difference lies in the feedback mechanism: DFB lasers use a built-in grating coextensive with the gain medium, while DBR lasers employ discrete reflector sections external to the gain region.
Wavelength Selection Mechanisms
Distributed feedback (DFB) lasers achieve wavelength selection through a built-in Bragg grating within the active region, providing continuous and stable single-mode operation by reflecting specific wavelengths and suppressing others. Distributed Bragg reflector (DBR) lasers use separate, external Bragg gratings as mirrors to define the lasing wavelength, allowing tunability but often resulting in more complex feedback dynamics. The integrated grating in DFB lasers offers superior wavelength stability and spectral purity compared to the external gratings in DBR lasers.
Spectral Purity and Linewidth Comparison
Distributed feedback (DFB) lasers exhibit higher spectral purity with narrower linewidths typically in the range of a few MHz due to their uniform grating structure that provides single longitudinal mode operation. Distributed Bragg reflector (DBR) lasers have slightly broader linewidths, often reaching tens of MHz, because their segmented grating design can introduce mode hopping and increased phase noise. The superior spectral stability and reduced linewidth of DFB lasers make them ideal for high-precision applications like coherent communications and high-resolution spectroscopy.
Fabrication Techniques and Complexity
Distributed feedback (DFB) lasers are fabricated using a semiconductor process that incorporates a periodic grating directly into the active region, requiring precise lithography and etching techniques to achieve uniformity and high-quality feedback. DBR (Distributed Bragg Reflector) lasers integrate separate Bragg reflector sections outside the active region, often involving more complex epitaxial growth and regrowth steps, leading to increased fabrication complexity. Your choice between these lasers depends on the trade-offs in production complexity, with DFB lasers offering simpler integration but DBR lasers providing more design flexibility through separate reflector control.
Performance in Optical Communication
Distributed feedback (DFB) lasers offer superior single-mode operation and lower spectral linewidth compared to Distributed Bragg Reflector (DBR) lasers, resulting in enhanced signal quality and reduced bit error rates in optical communication systems. DFB lasers provide higher modulation bandwidth and improved temperature stability, which supports long-distance, high-speed data transmission with minimal dispersion. DBR lasers, while easier to fabricate and cost-effective, typically exhibit higher chirp and mode instability, limiting their performance in advanced communication networks.
Tuning Capabilities and Flexibility
Distributed feedback (DFB) lasers offer limited tuning capabilities due to their fixed grating structure, resulting in narrow spectral linewidth and stable single-mode operation ideal for fixed-wavelength applications. Distributed Bragg reflector (DBR) lasers provide greater tuning flexibility by separating the gain section and the Bragg reflector, enabling wavelength tuning through current or temperature adjustments over a wider range. This architectural difference allows DBR lasers to support dynamic wavelength selection and broader tunability, making them preferable for applications requiring variable wavelengths and reconfigurability.
Reliability and Stability Considerations
Distributed feedback (DFB) lasers exhibit superior reliability and stability due to their built-in grating structure that ensures single longitudinal mode operation, reducing mode hopping and wavelength drift under varying temperatures and currents. DBR lasers, while also providing wavelength selectivity through separate Bragg reflector gratings, tend to show slightly more sensitivity to fabrication variations and environmental fluctuations, impacting their long-term stability. The monolithic integration of the grating in DFB lasers contributes to enhanced operational robustness and consistent performance in demanding optical communication systems.
Applications and Industry Adoption
Distributed feedback (DFB) lasers dominate telecommunications and data communication industries due to their narrow linewidth and stable single-mode operation, making them ideal for fiber-optic networks and high-speed internet infrastructure. Distributed Bragg reflector (DBR) lasers find extensive use in sensing applications and tunable laser systems, particularly in spectroscopy and optical coherence tomography, where wavelength selectivity and tuning range are crucial. Your choice between DFB and DBR lasers depends on whether you prioritize fixed-wavelength stability for communication or wavelength tunability for sensing and measurement tasks.

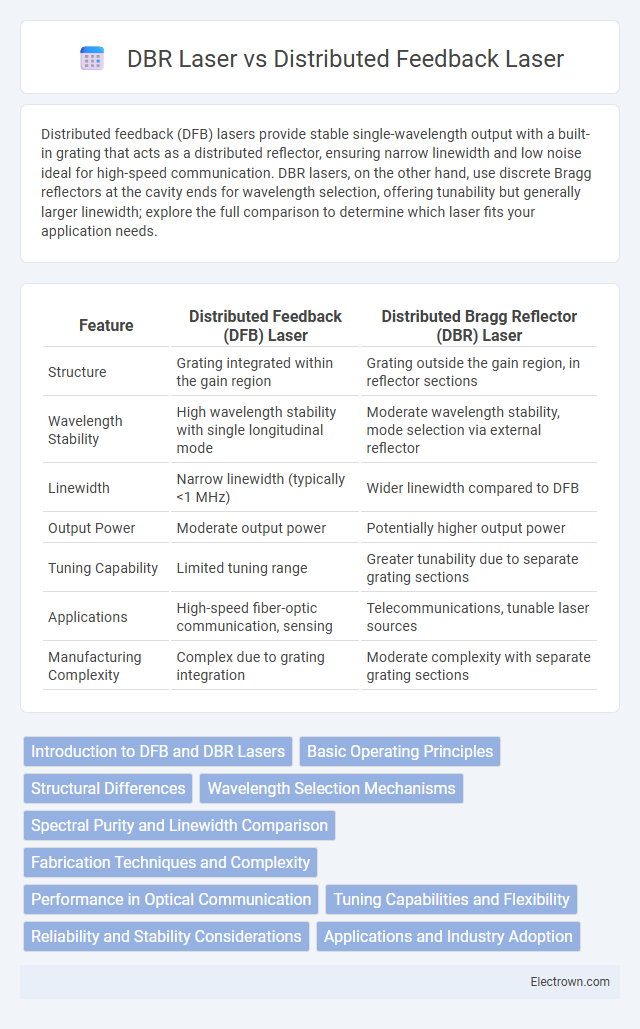

Distributed feedback laser vs DBR laser Infographic
