electrown.com MPPT (Maximum Power Point Tracking) controllers optimize solar power harvest by adjusting voltage to maximize energy extraction, making them more efficient under varying sunlight conditions than PWM (Pulse Width Modulation) controllers, which simply regulate voltage to battery levels without maximizing power output. To understand which charge controller best suits Your solar system and how it impacts overall performance, keep reading the rest of the article.
Table of Comparison
| Feature | MPPT Controller | PWM Controller |
|---|---|---|
| Full Form | Maximum Power Point Tracking | Pulse Width Modulation |
| Efficiency | Up to 30% higher energy harvest | Typically 70-80% |
| Cost | Higher initial cost | Lower initial cost |
| Complexity | Advanced electronics and algorithms | Simple design |
| Best Use | Large solar systems, variable weather | Small systems, stable conditions |
| Voltage Compatibility | Can match different panel voltages to battery voltage | Must match panel and battery voltage |
| Battery Life | Improves battery charging and lifespan | Less optimized charging |
Introduction to Solar Charge Controllers
Solar charge controllers regulate the voltage and current from solar panels to batteries, ensuring optimal charging and preventing overcharging or battery damage. MPPT (Maximum Power Point Tracking) controllers maximize energy harvest by constantly adjusting the electrical operating point of the panels, often increasing efficiency by 20-30% compared to PWM (Pulse Width Modulation) controllers. PWM controllers provide a simpler, cost-effective solution by directly regulating the voltage to match battery levels, making them suitable for smaller solar systems with stable sunlight conditions.
Understanding MPPT Technology
MPPT (Maximum Power Point Tracking) technology maximizes solar energy harvest by continuously adjusting the electrical operating point of the modules to deliver the highest possible power output. Unlike PWM (Pulse Width Modulation) controllers, MPPT controllers efficiently convert higher voltage from solar panels to lower voltage needed by batteries, increasing charging efficiency by up to 30%. Understanding MPPT technology helps you optimize your solar power system's performance, ensuring better energy utilization and longer battery life.
Overview of PWM Controllers
PWM controllers regulate solar panel output by rapidly switching the current on and off to maintain battery voltage at a safe level, optimizing charging efficiency at lower costs. They work best with smaller solar systems or 12V batteries but can lose efficiency in higher voltage setups due to increased power dissipation. Your choice of a PWM controller suits budget-conscious applications with simpler design requirements and steady sunlight conditions.
Key Differences Between MPPT and PWM
MPPT (Maximum Power Point Tracking) controllers optimize solar panel output by adjusting the electrical operating point to harvest maximum power, making them ideal for higher voltage systems and varying sunlight conditions. PWM (Pulse Width Modulation) controllers regulate voltage by switching the current on and off rapidly, maintaining a steady voltage but delivering less efficiency, especially in larger or more complex systems. MPPT controllers typically provide 10-30% more energy harvesting efficiency compared to PWM controllers, making them cost-effective for optimizing solar energy systems.
Efficiency Comparison: MPPT vs PWM
MPPT (Maximum Power Point Tracking) controllers typically achieve 92-99% efficiency by continuously adjusting to the solar panel's optimal voltage, whereas PWM (Pulse Width Modulation) controllers generally maintain around 70-85% efficiency due to their fixed voltage regulation. MPPT controllers are especially advantageous in conditions with varying sunlight and temperature, maximizing energy harvest by converting excess voltage into additional current. PWM controllers are simpler and less expensive but result in higher energy loss, particularly when panel voltage significantly exceeds battery voltage.
Cost Analysis: MPPT vs PWM Controllers
MPPT controllers typically cost 20-40% more than PWM controllers due to their advanced technology and higher efficiency in energy conversion. While PWM controllers have a lower upfront cost, MPPT controllers provide better long-term value by maximizing power output, especially in larger solar systems or varying weather conditions. Your investment in an MPPT controller often results in greater energy savings and faster system payback despite the higher initial expense.
Application Scenarios for Each Controller
MPPT controllers excel in solar power systems with large, variable panels and in locations with fluctuating sunlight, maximizing energy harvest by adjusting the input voltage to the battery's optimal charging voltage. PWM controllers are better suited for smaller systems or applications with consistent sunlight, where cost-effectiveness and simplicity are prioritized, such as RVs, small off-grid cabins, or marine use. Solar arrays with higher voltage-to-battery voltage ratios benefit from MPPT controllers, while 12V or 24V solar systems with lower power panels typically perform well with PWM controllers.
Pros and Cons of MPPT Controllers
MPPT controllers maximize solar power efficiency by tracking the optimal voltage for peak power output, resulting in higher energy harvest compared to PWM controllers, especially in low light or cold conditions. They offer greater cost-effectiveness over time by improving system performance and are compatible with larger battery banks and higher voltage solar arrays. However, MPPT controllers come with a higher initial cost and increased complexity, which may require more technical knowledge for installation and maintenance.
Pros and Cons of PWM Controllers
PWM controllers offer a cost-effective and straightforward solution for regulating solar charge, making them ideal for small-scale solar systems with stable voltage requirements. Their main advantages include simplicity, reliability, and compatibility with a wide variety of battery types, yet they struggle with efficiency in low sunlight conditions due to fixed voltage operation. However, drawbacks such as lower energy harvest potential and limited adaptability to varying solar panel voltages reduce overall system performance compared to MPPT controllers.
How to Choose the Right Controller for Your Solar System
Selecting the right solar charge controller depends on system size, panel type, and budget. MPPT controllers optimize energy harvest by matching the solar array's voltage to the battery, making them ideal for larger systems with higher voltage panels. PWM controllers are more cost-effective for small, simple systems but sacrifice efficiency by directly connecting panels to batteries without voltage conversion.

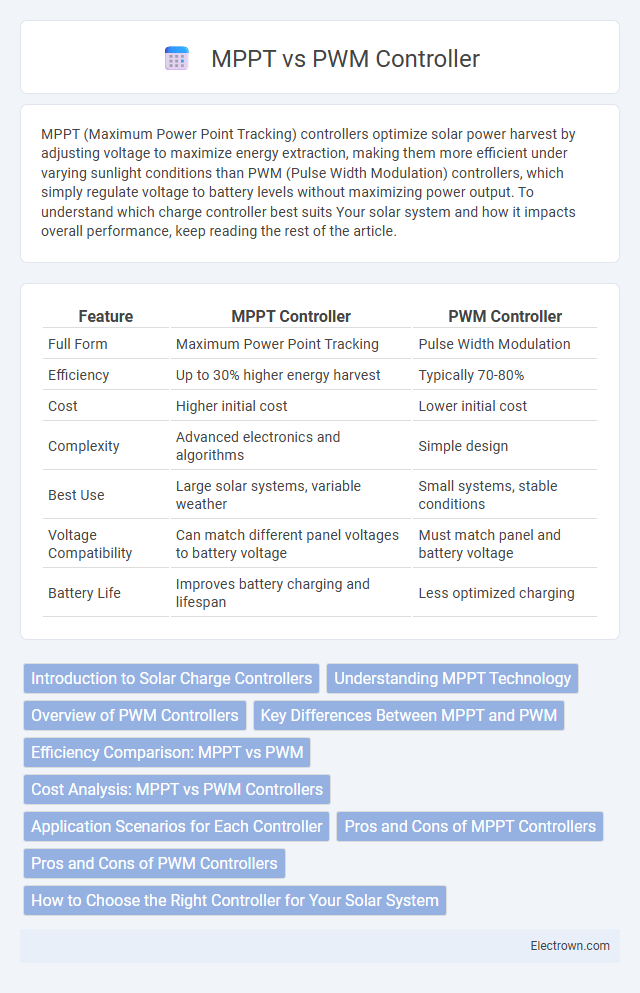

MPPT vs PWM controller Infographic
