electrown.com Push-pull amplifiers deliver high efficiency and reduced distortion by using complementary transistor pairs to amplify both halves of the input signal, making them ideal for audio power applications. Cascode amplifiers offer high gain and improved bandwidth by stacking transistors, minimizing Miller effect and enhancing frequency response; explore the rest of the article to understand which amplifier suits your specific needs.
Table of Comparison
| Feature | Push-Pull Amplifier | Cascode Amplifier |
|---|---|---|
| Configuration | Two complementary transistors (NPN & PNP) in push-pull arrangement | Cascade of common-emitter and common-base transistors |
| Operation | Alternates current flow in each half cycle, reducing distortion | Improves gain and bandwidth by minimizing Miller effect |
| Gain | Moderate voltage and high power gain | High voltage gain |
| Bandwidth | Limited compared to cascode | Wide bandwidth due to reduced Miller capacitance |
| Input Impedance | Moderate input impedance | High input impedance |
| Output Impedance | Low output impedance | Moderate to high output impedance |
| Linearity | Good linearity, reduces distortion | Very high linearity in voltage amplification |
| Applications | Audio power amplifiers, class B and AB amplifiers | RF amplifiers, low-noise and high-gain circuits |
| Advantages | Efficient power conversion, reduced distortion | High gain, improved bandwidth, reduced noise |
| Disadvantages | Cross-over distortion at zero crossing | More complex biasing and design |
Introduction to Push-Pull and Cascode Amplifiers
Push-pull amplifiers use two active devices operating in opposite phases to deliver high power output with reduced distortion and improved efficiency, making them ideal for audio and RF applications. Cascode amplifiers combine a common-emitter and common-base stage to provide high gain, enhanced bandwidth, and superior isolation between input and output, which improves overall amplifier stability. Your choice between push-pull and cascode configurations depends on the specific requirements for linearity, gain, and frequency response in your circuit.
Basic Principles of Push-Pull Amplifiers
Push-pull amplifiers operate by using two active devices, such as transistors or tubes, that alternately amplify opposite halves of an input signal, effectively reducing distortion and improving efficiency. Each device conducts during one half of the waveform, which cancels even-order harmonics and enhances linearity. This design is widely employed in audio and RF amplification due to its ability to provide high power output with minimal signal degradation.
Fundamental Concepts of Cascode Amplifiers
Cascode amplifiers combine a common-emitter stage with a common-base stage to achieve high gain and improved bandwidth by minimizing Miller capacitance effects. The structure enhances output impedance and provides better isolation between input and output, resulting in reduced distortion and increased frequency response. Typically used in RF and high-frequency applications, cascode amplifiers deliver superior performance compared to push-pull amplifiers, which primarily focus on linearity and efficiency in power amplification.
Circuit Design Comparison: Push-Pull vs Cascode
Push-pull amplifiers use complementary transistor pairs to provide efficient output power and minimize distortion by driving both halves of the waveform, making them ideal for audio and power applications. Cascode amplifiers consist of a common-emitter stage cascaded with a common-base stage, improving gain, bandwidth, and reducing Miller effect capacitance for high-frequency performance. Push-pull designs emphasize power efficiency and linearity, while cascode circuits prioritize high gain and wide bandwidth with superior stability in RF and analog front-end circuits.
Efficiency Differences Between Push-Pull and Cascode
Push-pull amplifiers offer higher efficiency by operating both transistors alternately in their active regions, reducing power loss and heat dissipation compared to cascode amplifiers. Cascode amplifiers excel in voltage gain and bandwidth but typically exhibit lower efficiency due to continuous current flow through stacked transistors. Your choice depends on whether maximizing power efficiency or achieving superior frequency response and gain is the primary goal.
Linearity and Distortion Analysis
Push-pull amplifiers offer improved linearity by canceling even-order harmonics, which reduces distortion and enhances audio and signal fidelity. Cascode amplifiers provide superior gain and bandwidth while minimizing Miller capacitance, leading to low distortion and stable high-frequency performance. Your choice between the two should consider whether enhanced linearity or higher frequency response is more critical for your application.
Frequency Response: Cascode vs Push-Pull
The cascode amplifier exhibits superior high-frequency response due to its reduced Miller capacitance and increased gain-bandwidth product, making it ideal for RF and high-speed applications. Push-pull amplifiers provide better linearity and efficiency at mid to low frequencies but suffer from reduced frequency response because of crossover distortion and increased parasitic capacitances. Consequently, cascode configurations outperform push-pull stages in preserving signal integrity at high frequencies while maintaining moderate gain.
Applications in Audio and RF Systems
Push-pull amplifiers are widely used in audio systems for their high efficiency and ability to reduce even-order harmonic distortion, making them ideal for driving speakers in hi-fi and musical instrument amplifiers. Cascode amplifiers excel in RF systems due to their high gain, increased bandwidth, and improved isolation between input and output, which enhances signal integrity in radio transmitters and receivers. Both amplifier types address distinct performance demands, with push-pull prioritizing audio fidelity and power efficiency, while cascode designs optimize high-frequency amplification and noise reduction.
Advantages and Limitations of Each Topology
Push-pull amplifiers offer high efficiency and good linearity by driving the load with complementary transistors, reducing even-order harmonic distortion but suffer from crossover distortion and require careful biasing. Cascode amplifiers provide high gain, improved bandwidth, and better isolation between input and output, minimizing Miller capacitance effects, yet they are more complex, consume more power, and have limited voltage swing. While push-pull stages excel in power amplification for audio and RF applications, cascode topologies are preferred in low-noise and high-frequency circuits despite their increased design complexity.
Choosing the Right Amplifier for Your Needs
Push-pull amplifiers deliver high power efficiency and reduced distortion, making them ideal for audio applications requiring strong output signals and minimal harmonic interference. Cascode amplifiers offer superior bandwidth and high gain with low Miller capacitance, suited for high-frequency and low-noise applications like RF circuits. Selecting between push-pull and cascode amplifiers depends on factors such as output power requirements, frequency response, linearity, and application-specific performance criteria.

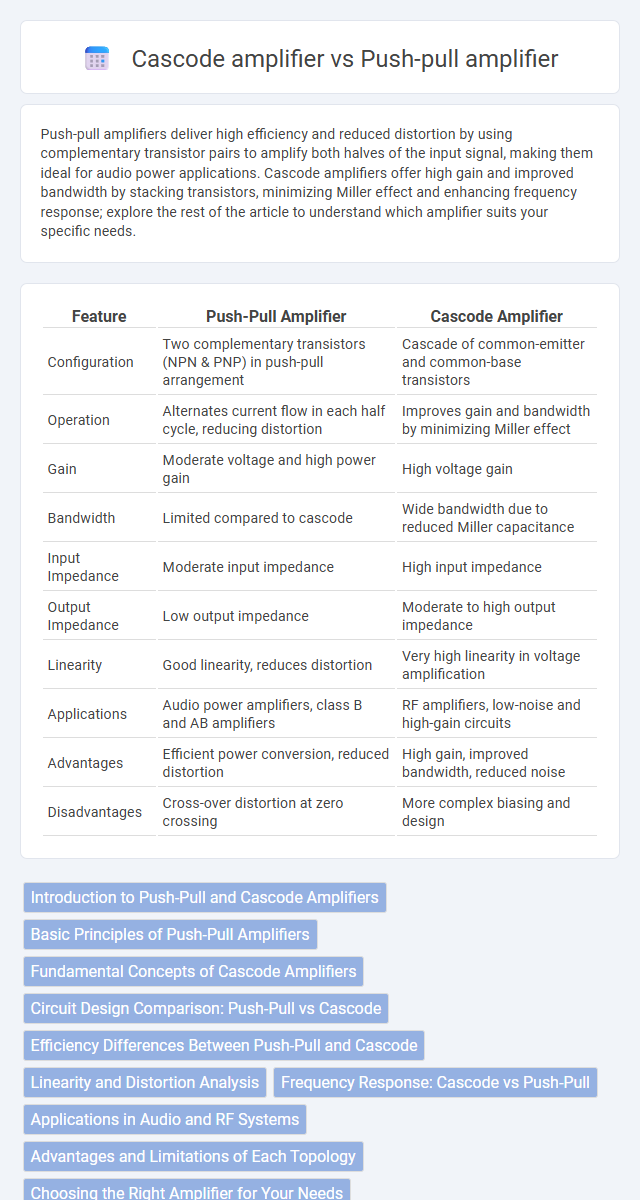

Push-pull amplifier vs cascode amplifier Infographic
