electrown.com Class A amplifiers provide high linearity and low distortion by conducting current throughout the entire input signal cycle, resulting in excellent audio quality but lower efficiency and greater heat generation. Understanding the differences between Class A and Class AB amplifiers can help you choose the right amplifier for your audio system, so read on to explore their key performance features.
Table of Comparison
| Feature | Class A Amplifier | Class AB Amplifier |
|---|---|---|
| Operation | Conducts output current throughout the entire input signal cycle (360deg) | Conducts output current for more than half but less than full cycle (180deg-360deg) |
| Efficiency | Low efficiency (~20-30%) due to constant current flow | Higher efficiency (~50-70%), combining Class A and Class B benefits |
| Distortion | Minimal distortion; high linearity | Moderate distortion; crossover distortion minimized |
| Heat Dissipation | High heat generation; requires robust heat sinking | Moderate heat generation; efficient thermal management |
| Applications | High-fidelity audio, precision amplification | Audio amplifiers, wide use in consumer electronics |
| Complexity | Simple design | More complex due to biasing networks |
Introduction to Power Amplifier Classes
Class A amplifiers operate with the output transistor conducting throughout the entire input signal cycle, offering high linearity but low efficiency, typically around 20-30%. Class AB amplifiers combine the characteristics of Class A and Class B, where transistors conduct more than half but less than the full cycle, improving efficiency to approximately 50-70% while maintaining low distortion. Power amplifier classes are categorized based on conduction angle, efficiency, and linearity, which directly impact audio fidelity and thermal performance in electronic devices.
Overview of Class A Amplifiers
Class A amplifiers operate with the output transistor conducting continuously, offering high linearity and low distortion ideal for audiophile-quality sound reproduction. These amplifiers generate significant heat due to constant current flow, requiring robust heat dissipation mechanisms. Your choice of a Class A amplifier ensures superior audio fidelity but at the cost of lower efficiency compared to Class AB designs.
Overview of Class AB Amplifiers
Class AB amplifiers combine the linearity of Class A operation with the efficiency of Class B, making them ideal for audio applications where sound quality and power efficiency are important. They operate by allowing both transistors to conduct slightly at the crossover point, reducing crossover distortion commonly found in Class B amplifiers. Your audio system benefits from Class AB amplifiers by achieving a balance of low distortion and moderate power consumption, suitable for home and professional audio equipment.
Key Differences Between Class A and Class AB Amplifiers
Class A amplifiers operate with the output transistor conducting continuously throughout the entire input signal cycle, resulting in high linearity and low distortion but low efficiency, typically around 20-30%. Class AB amplifiers combine the advantages of Class A and Class B by allowing the output transistor to conduct for more than half but less than the entire signal cycle, achieving better efficiency (up to 70%) while maintaining relatively low distortion suitable for audio amplification. The key difference lies in their conduction angle and power efficiency, with Class A prioritizing signal fidelity and Class AB balancing fidelity and power consumption.
Efficiency Comparison: Class A vs Class AB
Class A amplifiers typically have an efficiency around 20-30%, as they conduct current continuously regardless of the input signal, leading to significant power loss as heat. In contrast, Class AB amplifiers improve efficiency considerably, achieving approximately 50-70% by combining the low distortion benefits of Class A operation with the higher efficiency of Class B during signal peaks. The higher efficiency of Class AB designs makes them more suitable for applications requiring both audio fidelity and reduced power consumption.
Distortion and Sound Quality Analysis
Class A amplifiers produce the least distortion due to their continuous conduction of current, offering superior sound quality with a smooth and natural audio output. Class AB amplifiers reduce crossover distortion present in pure Class B designs by combining Class A biasing with Class B operation, resulting in lower distortion than Class B but slightly higher than Class A. Audiophiles often prefer Class A amps for their harmonic purity and detailed soundstage, while Class AB offers a balanced compromise between efficiency and sound fidelity.
Heat Management and Thermal Performance
Class A amplifiers generate continuous current flow through output devices, resulting in significant heat dissipation and requiring robust heat sinks for effective thermal management. Class AB amplifiers operate with greater efficiency by reducing idle current, which lowers heat generation and simplifies cooling solutions. Improved thermal performance in Class AB designs extends component lifespan and enhances reliability in audio amplification applications.
Typical Applications and Use Cases
Class A amplifiers are commonly used in high-fidelity audio equipment and precision instrumentation due to their low distortion and excellent linearity, making them ideal for audiophiles and sensitive measurement devices. Class AB amplifiers dominate in consumer electronics such as home audio systems, car amplifiers, and public address systems by providing a balance between efficiency and audio quality, suitable for medium to high power output. Industrial applications benefit from Class AB designs where moderate linearity and efficiency are critical, including professional sound reinforcement and audio broadcasting.
Design Considerations for Audio Enthusiasts
Class A amplifiers deliver pure, low-distortion audio with continuous output transistor conduction, ideal for audiophiles prioritizing sound fidelity despite lower efficiency and higher heat generation. Class AB amplifiers combine the linearity of Class A with improved efficiency by allowing transistors to conduct for more than half but less than the full signal cycle, reducing crossover distortion and heat compared to Class A designs. Audio enthusiasts select Class A designs for superior audio purity and Class AB for a balanced trade-off between sound quality, efficiency, and thermal performance in home audio systems.
Choosing the Right Amplifier Class for Your Needs
Class A amplifiers provide superior linearity and minimal distortion, making them ideal for audiophiles prioritizing sound fidelity despite lower efficiency and higher heat generation. Class AB amplifiers strike a balance between the high efficiency of Class B and the low distortion of Class A, offering improved power output and cooler operation, suitable for general audio applications and professional use. Selecting the right amplifier class depends on specific requirements for sound quality, power efficiency, and thermal management in your audio setup.

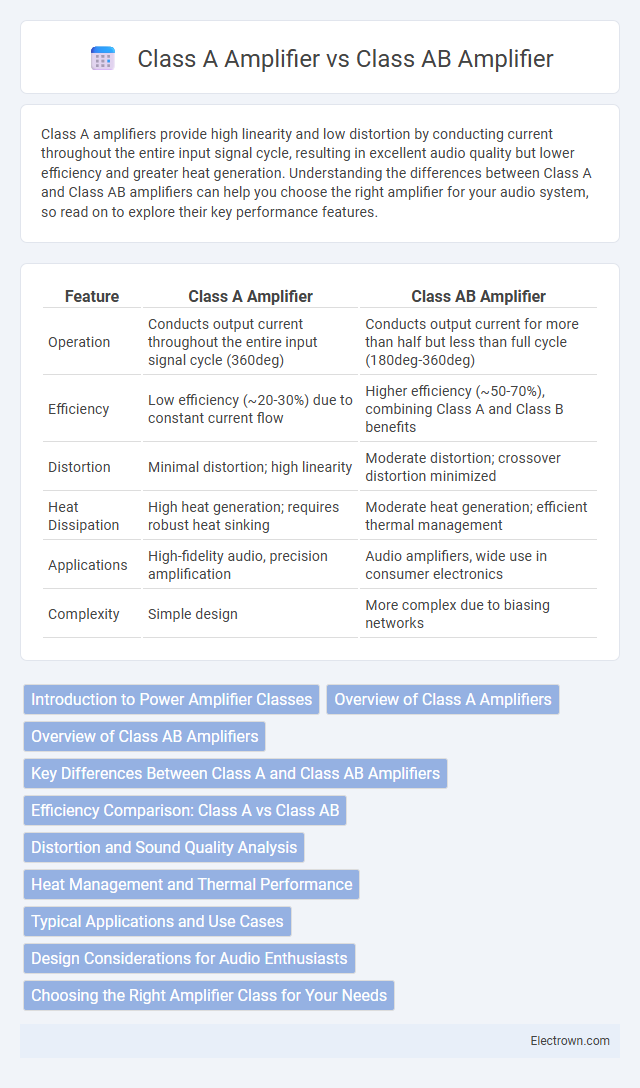

Class A amplifier vs class AB amplifier Infographic
