electrown.com Resonant cavity oscillators deliver ultra-stable frequency output by utilizing a high-Q cavity that confines electromagnetic waves, while Gunn diode oscillators generate microwave signals through the negative resistance effect in semiconductor materials, offering simpler design and lower cost. Explore the detailed comparison to understand which oscillator best suits your high-frequency application needs.
Table of Comparison
| Feature | Resonant Cavity Oscillator | Gunn Diode Oscillator |
|---|---|---|
| Operating Principle | Uses a high-Q resonant cavity to create microwave oscillations. | Utilizes negative differential resistance in a Gunn diode to generate microwave signals. |
| Frequency Range | Typically 1 GHz to 100 GHz or higher. | Typically 1 GHz to 100 GHz, depending on diode material. |
| Frequency Stability | High stability due to fixed cavity dimensions. | Moderate stability, affected by temperature and bias conditions. |
| Output Power | Moderate to high output power. | Low to moderate output power. |
| Phase Noise | Low phase noise due to high-Q cavity. | Higher phase noise relative to cavity oscillators. |
| Size and Complexity | Bulky and complex due to cavity structure. | Compact and simpler circuit design. |
| Applications | Radar systems, frequency standards, communication transmitters. | Microwave oscillators for sensors, local oscillators in receivers. |
Introduction to Microwave Oscillators
Microwave oscillators are essential components in high-frequency communication systems, with resonant cavity oscillators utilizing a high-Q cavity to stabilize frequency through electromagnetic resonance, providing low phase noise and high spectral purity. Gunn diode oscillators generate microwave signals based on the negative differential resistance in certain semiconductor materials, offering compact size and simplicity but typically higher phase noise compared to cavity oscillators. Your choice depends on specific requirements like frequency stability, power output, and application environment, where resonant cavity oscillators excel in precision and Gunn diode oscillators prioritize integration and cost-effectiveness.
Overview of Resonant Cavity Oscillators
Resonant cavity oscillators utilize a metallic cavity resonator to achieve high-frequency stability and low phase noise, making them ideal for microwave and millimeter-wave applications. These oscillators generate signals by sustaining electromagnetic waves within the cavity at its resonant frequency, which is determined by the cavity's physical dimensions and shape. Compared to Gunn diode oscillators, resonant cavity oscillators offer superior frequency selectivity and spectral purity, essential in radar, satellite communication, and precision instrumentation.
Fundamentals of Gunn Diode Oscillators
Gunn diode oscillators operate based on the Gunn effect, where a negative differential resistance region in the diode's voltage-current characteristic enables microwave frequency generation without bipolar junctions. These oscillators consist of a Gunn diode placed in a resonant cavity or attached to a waveguide structure that establishes the necessary feedback for sustained oscillations. Unlike resonant cavity oscillators that primarily rely on the cavity's high-Q factor for frequency stability, Gunn diode oscillators leverage the semiconductor's intrinsic material properties for compact and tunable microwave sources.
Operating Principles: Resonant Cavity vs Gunn Diode
Resonant cavity oscillators operate by confining electromagnetic waves within a metallic cavity, producing high-frequency stable signals through resonance at specific cavity modes. Gunn diode oscillators rely on the negative differential resistance phenomenon in GaAs or GaN semiconductors, where an applied voltage induces electron domain formation, generating microwave oscillations. Your choice depends on frequency stability requirements and integration needs, with resonant cavity oscillators favored for high Q-factor resonance and Gunn diode oscillators for compact, semiconductor-based designs.
Frequency Stability Comparison
Resonant cavity oscillators exhibit superior frequency stability due to their high-Q factor resonators that maintain consistent oscillation frequency over varying environmental conditions. Gunn diode oscillators, while capable of generating microwave signals, generally show lower frequency stability caused by temperature sensitivity and device aging effects. Your choice depends on the application's tolerance for frequency drift and the required precision in signal generation.
Output Power and Efficiency
Resonant cavity oscillators typically achieve higher output power due to their ability to confine electromagnetic energy within a high-Q cavity, enabling efficient energy buildup and low phase noise performance. Gunn diode oscillators exhibit moderate output power levels but are favored for their simplicity and compact size, with efficiency generally limited by diode material properties and thermal management. While resonant cavity oscillators excel in efficiency at high frequencies by minimizing energy losses, Gunn diode oscillators often sacrifice some efficiency for cost-effectiveness and ease of integration in microwave circuits.
Design Complexity and Implementation
Resonant cavity oscillators feature high design complexity due to precise cavity dimensions and material selection required for stable frequency generation, making their implementation more intricate and cost-intensive. Gunn diode oscillators are simpler to design and implement, relying on the negative resistance characteristic of the Gunn diode, which allows for compact, solid-state configurations ideal for lower-frequency microwave applications. Your choice depends on the required frequency stability and system integration constraints, with resonant cavity oscillators favored in high-precision settings and Gunn diode oscillators preferred for cost-effective, simpler designs.
Applications in Modern Technology
Resonant cavity oscillators are widely used in high-frequency applications such as radar systems, satellite communications, and microwave transmitters due to their stable frequency and low phase noise. Gunn diode oscillators find extensive use in millimeter-wave and terahertz technologies, including automotive radar, wireless communication, and spectroscopy, thanks to their simplicity and ability to generate microwave signals without external feedback. Both oscillator types play crucial roles in advancing modern communication systems, with resonant cavity oscillators favored for precision and Gunn diode oscillators prized for compact, cost-effective microwave generation.
Advantages and Limitations
Resonant cavity oscillators offer superior frequency stability and high Q-factor, making them ideal for microwave applications requiring precise frequency control, but they tend to be bulky and expensive. Gunn diode oscillators provide compact size and ease of integration with semiconductor circuits, delivering high-frequency signals efficiently, though they suffer from higher phase noise and limited frequency tunability. The choice between these oscillators depends on the trade-off between frequency precision and device miniaturization for specific radio frequency and microwave system requirements.
Choosing Between Resonant Cavity and Gunn Diode Oscillators
Resonant cavity oscillators deliver high frequency stability and low phase noise, making them ideal for precision microwave applications and radar systems. Gunn diode oscillators offer compact size, simplicity, and cost-effectiveness, suitable for millimeter-wave generation and short-range communication. When choosing between the two, prioritize resonant cavity oscillators for stringent frequency control and Gunn diode oscillators for affordable, high-frequency sources with moderate stability.

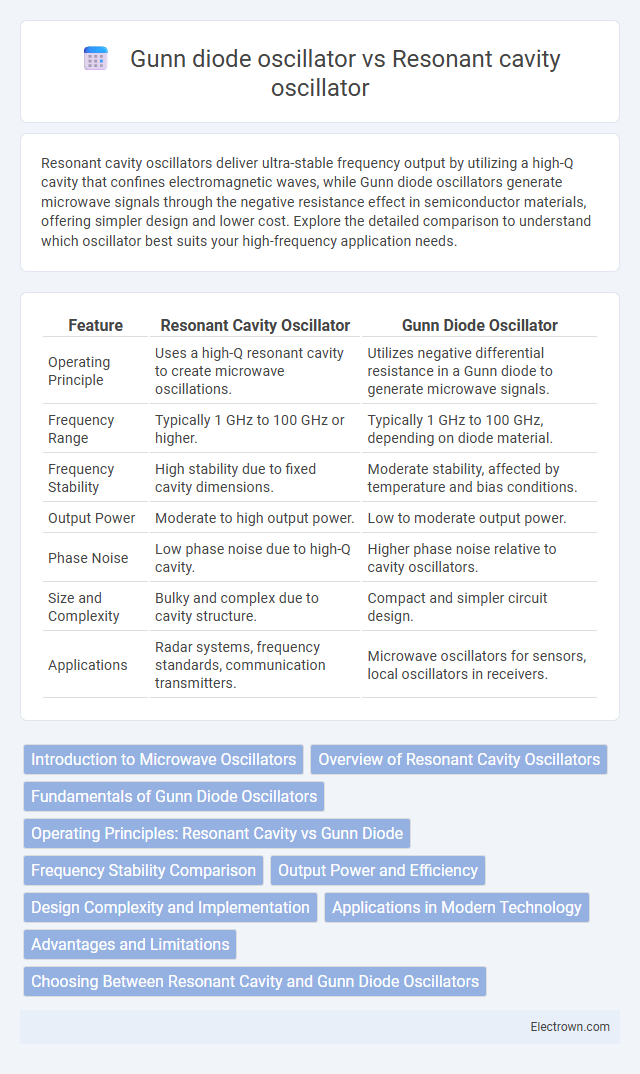

Resonant cavity oscillator vs Gunn diode oscillator Infographic
