electrown.com Step response and impulse response are fundamental characteristics of linear time-invariant (LTI) systems, where the step response describes the output when the system is subjected to a sudden, sustained input change, and the impulse response represents the system's output to a brief, instantaneous input signal. Understanding these responses is crucial for analyzing system dynamics, and you can explore the detailed differences and applications by reading the rest of the article.
Table of Comparison
| Aspect | Step Response | Impulse Response |
|---|---|---|
| Definition | System output when subjected to a step input (Heaviside function) | System output when subjected to an impulse input (Dirac delta function) |
| Input Signal | Step function: sudden change from zero to a constant value | Impulse function: infinitely short, high magnitude at t=0 |
| Interpretation | Shows how system settles to a new steady state | Represents system's inherent dynamics and natural response |
| Mathematical Relation | Step response = Integral of impulse response over time | Impulse response = Derivative of step response |
| Use Cases | Analyze stability, steady-state behavior, transient response | Identify system characteristics, impulse behavior, and kernel for convolution |
| System Type | Applicable to Linear Time-Invariant (LTI) systems | Applicable to Linear Time-Invariant (LTI) systems |
| Output Nature | Typically smooth, step-wise increase or decrease | Usually a sharp, transient spike followed by decay |
Introduction to Step Response and Impulse Response
Step response and impulse response are fundamental concepts in signal processing and control systems, describing a system's behavior when subjected to specific inputs. The step response characterizes how a system reacts over time to a sudden, sustained change from zero to a constant input, often used to analyze system stability and transient response. The impulse response defines the output generated by an instantaneous, brief input signal, serving as a vital tool for system identification and convolution-based calculations.
Defining Step Response in Dynamic Systems
Step response in dynamic systems represents the output behavior when the system is subjected to a sudden and sustained input change, typically modeled as a Heaviside step function. It characterizes how the system transitions from an initial state to a new steady state, revealing properties like stability, rise time, and settling time. Unlike the impulse response, which captures the system's reaction to a brief input spike, the step response provides insight into long-term system dynamics and performance under constant input conditions.
Understanding Impulse Response: Key Concepts
Impulse response characterizes a system's output when subjected to a brief, instantaneous input signal, often modeled as a Dirac delta function. It reveals critical system properties such as stability, causality, and frequency behavior, forming the basis for analyzing linear time-invariant (LTI) systems. Understanding the impulse response enables prediction of the system's output to any arbitrary input through convolution, emphasizing its role as a fundamental system descriptor.
Comparing Step and Impulse Inputs
Step and impulse inputs are fundamental in analyzing dynamic systems, where the step response reveals the system's behavior to a sudden, sustained change, characterized by the gradual transition to a new steady state. In contrast, the impulse response captures the system's reaction to a brief, instantaneous input, highlighting its intrinsic dynamics and natural frequencies. Comparing these responses provides insight into system stability, time constants, and frequency characteristics essential for control design and signal processing.
Mathematical Relationships Between Step and Impulse Responses
The step response of a system is the integral of its impulse response, meaning the step response represents the accumulated effect of the impulse input over time. Conversely, the impulse response is the derivative of the step response, describing the system's immediate reaction to a brief input signal. This mathematical relationship allows the characterization of linear time-invariant systems by analyzing either response to obtain the other through integration or differentiation.
Practical Applications in Engineering and Signal Processing
Step response and impulse response are fundamental in characterizing dynamic systems, with impulse response providing detailed insight into system behavior and stability, critical for filter design and system identification in signal processing. Step response is widely used for analyzing control systems and determining time-domain specifications such as rise time, settling time, and steady-state error, essential for engineering applications like automation and robotics. Both responses facilitate system modeling, with impulse response allowing convolution-based analysis in linear time-invariant (LTI) systems, and step response aiding in real-world input evaluation and transient response assessment.
Frequency Domain Analysis: Step vs Impulse Response
The step response and impulse response provide complementary insights in frequency domain analysis by characterizing a system's behavior across frequencies. The impulse response directly corresponds to the system's transfer function via the Fourier transform, revealing the frequency spectrum without smoothing. In contrast, the step response is the integral of the impulse response, highlighting low-frequency components and steady-state characteristics, often used to infer DC gain and system stability in control engineering.
Visualizing System Behavior: Response Curves Explained
Step response and impulse response curves provide essential visualizations for understanding system behavior in control engineering. The step response illustrates how a system reacts over time to a sudden, sustained input, highlighting stability, rise time, and settling time characteristics. Your analysis of these response curves helps diagnose dynamic performance and predict how the system handles real-world signals.
Advantages and Limitations of Each Response
Step response provides clear insight into system stability and steady-state behavior, making it ideal for analyzing long-term performance despite slower reaction to transient dynamics. Impulse response captures instantaneous system dynamics and transient characteristics with high temporal resolution, beneficial for detailed time-domain analysis but often noisy and less intuitive for practical steady-state interpretation. The step response excels in control system design by emphasizing cumulative effects, whereas the impulse response is key for system identification and filter design, given its ability to reveal intrinsic system properties rapidly.
Conclusion: Selecting the Right Approach for System Analysis
Choosing between step response and impulse response depends on your system analysis goals and the nature of the input signal. Step response provides insight into the system's steady-state behavior and stability, making it ideal for control systems evaluation. Impulse response reveals the system's fundamental dynamics and transient characteristics, essential for understanding system causality and time-domain behavior.

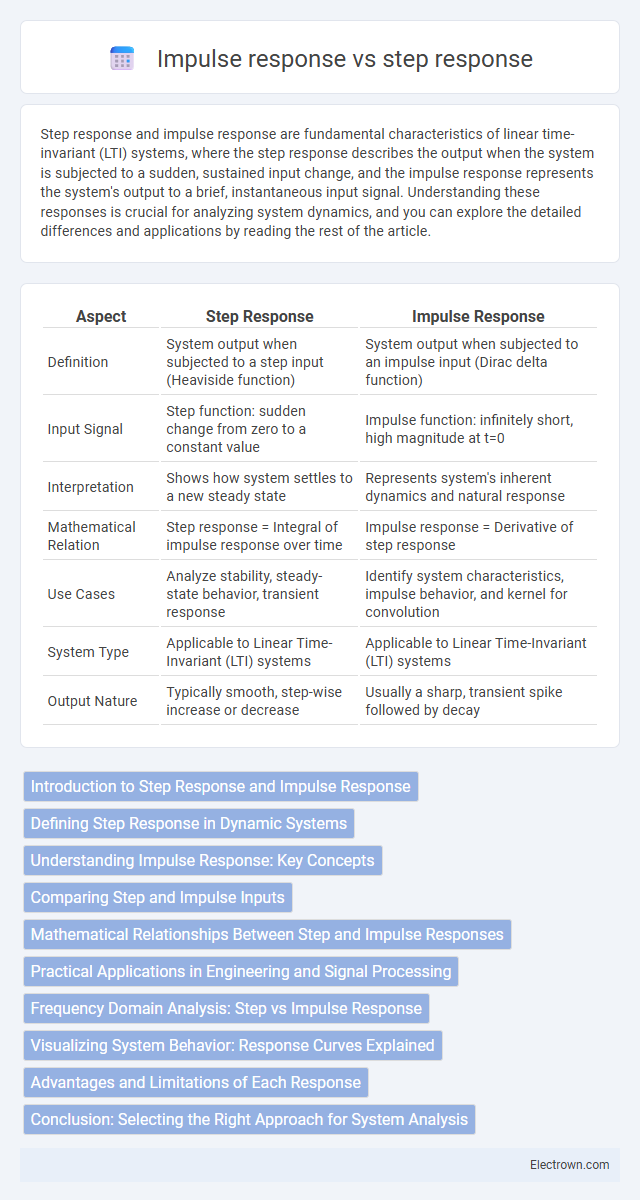

step response vs impulse response Infographic
