electrown.com Frequency synthesizers generate precise frequencies by combining multiple signals using phase-locked loops, providing stable and tunable output for communication systems. Understanding the differences and advantages of a Direct Digital Synthesizer can enhance your signal processing knowledge--explore the rest of the article for a detailed comparison.
Table of Comparison
| Feature | Frequency Synthesizer | Direct Digital Synthesizer (DDS) |
|---|---|---|
| Function | Generates frequencies using PLL and divider circuits | Generates frequencies via digital phase accumulation and DAC output |
| Frequency Resolution | Limited by reference oscillator and divider ratio | High resolution, programmable at fine frequency increments |
| Output Signal Quality | Good purity, may require filtering | Low phase noise, highly stable output |
| Tuning Speed | Slower, depends on PLL locking time | Very fast, near-instantaneous frequency changes |
| Complexity | Moderate complexity with analog and digital components | Higher complexity due to digital processing and DAC |
| Application | Radio communication, signal generation where analog stability is needed | Test equipment, waveform generation, agile frequency sources |
| Cost | Typically lower cost | Higher cost due to DAC and digital circuitry |
Introduction to Frequency Synthesizers
Frequency synthesizers generate precise frequencies by combining reference signals with frequency dividers and mixers to achieve a wide range of outputs, essential for communication systems and signal processing. Direct Digital Synthesizers (DDS) offer frequency agility and fine resolution through digital phase accumulators and lookup tables, enabling rapid frequency changes without analog tuning components. Your choice between a traditional frequency synthesizer and DDS depends on requirements for phase noise, frequency stability, tuning speed, and spectral purity.
Understanding Direct Digital Synthesizers (DDS)
Direct Digital Synthesizers (DDS) generate precise frequency signals using a digital phase accumulator and a high-speed digital-to-analog converter, enabling fine frequency resolution and rapid tuning. Unlike traditional frequency synthesizers that rely on analog components such as phase-locked loops (PLLs), DDS offers superior spectral purity and minimal phase noise due to its digital control. The ability of DDS to produce complex waveforms with agile frequency changes makes it ideal for applications requiring high accuracy and stability in signal generation.
Key Differences: Frequency Synthesizer vs DDS
Frequency synthesizers primarily generate output frequencies by mixing or dividing reference signals, utilizing phase-locked loops (PLLs) for stable frequency control, while direct digital synthesizers (DDS) create waveforms digitally through phase accumulation and digital-to-analog conversion, offering precise frequency agility and fast switching. Frequency synthesizers excel in generating high-frequency signals with low phase noise but often require longer settling times, whereas DDS systems provide superior frequency resolution, rapid frequency hopping, and fine phase control but may encounter spurious signal components due to quantization noise. The choice between frequency synthesizers and DDS depends on application-specific requirements such as frequency range, phase noise tolerance, frequency switching speed, and spectral purity.
Fundamental Working Principles
Frequency synthesizers generate desired output frequencies by mixing and dividing a reference frequency through phase-locked loops (PLLs) and voltage-controlled oscillators (VCOs), producing stable and accurate signals. Direct Digital Synthesizers (DDS) use a digital phase accumulator, a lookup table for waveform data, and a digital-to-analog converter (DAC) to produce precise frequency outputs with fine resolution and fast switching capabilities. While frequency synthesizers rely on analog components for frequency generation, DDS employs digital signal processing techniques for frequency synthesis.
Performance Metrics Comparison
Frequency synthesizers and direct digital synthesizers (DDS) differ significantly in performance metrics such as phase noise, frequency resolution, and switching speed. DDS offers superior frequency resolution and ultra-fast switching speeds due to its digital architecture, making it ideal for applications requiring precise and rapid frequency changes. In contrast, traditional frequency synthesizers typically provide lower phase noise and better spectral purity, which is crucial in high-frequency communication systems.
Applications in Modern Electronics
Frequency synthesizers are widely used in communication systems, signal generators, and radar systems due to their ability to generate stable and precise frequencies through phase-locked loops (PLLs). Direct Digital Synthesizers (DDS) excel in applications requiring rapid frequency hopping, fine frequency resolution, and arbitrary waveform generation, such as in software-defined radios, test equipment, and digital signal processing. Your choice between a frequency synthesizer and DDS depends on the need for frequency agility, phase noise performance, and application-specific requirements in modern electronics.
Advantages and Limitations of Frequency Synthesizers
Frequency synthesizers offer high spectral purity and stable frequency generation, making them ideal for communications and signal processing applications. They can generate multiple frequencies from a single reference oscillator but often suffer from longer settling times and increased phase noise compared to Direct Digital Synthesizers (DDS). Frequency synthesizers typically have limitations in fine frequency resolution and rapid frequency hopping, whereas DDS excels in those areas with digital control and fast switching capabilities.
Benefits and Drawbacks of Direct Digital Synthesizers
Direct Digital Synthesizers (DDS) offer high frequency resolution, fast switching speeds, and excellent phase noise performance, making them ideal for applications requiring precise frequency control and agility. However, DDS systems can suffer from spurious signals and limited output frequency range due to digital-to-analog converter constraints, which may necessitate additional filtering and signal processing. Their complexity and power consumption are generally higher compared to traditional Frequency Synthesizers, impacting design considerations in power-sensitive or cost-sensitive systems.
Selection Criteria: Which Synthesizer to Choose?
Choosing between a Frequency Synthesizer and a Direct Digital Synthesizer (DDS) depends on factors like output frequency accuracy, phase noise, and tuning speed. DDS offers superior frequency resolution and fast switching times, making it ideal for applications requiring precise signal generation and agile frequency changes. You should select a frequency synthesizer if low phase noise and high output power are critical, especially in RF communication systems.
Future Trends in Frequency Synthesis Technology
Frequency synthesizers are evolving toward higher integration and lower phase noise, enabling more compact and energy-efficient communication systems. Direct Digital Synthesizers (DDS) offer enhanced frequency agility and improved spectral purity, increasingly leveraging advanced CMOS technology and AI-driven control algorithms for dynamic frequency management. Future trends emphasize hybrid architectures combining PLL-based and DDS approaches to achieve ultra-fast tuning speeds and precision in 5G, IoT, and radar applications.

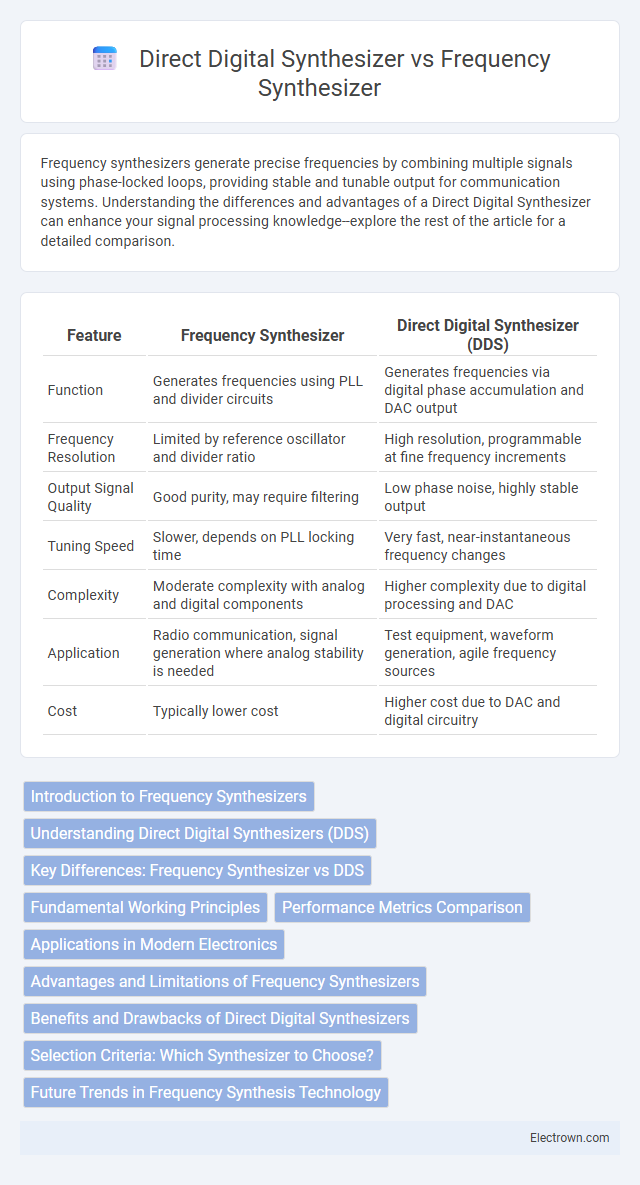

Frequency Synthesizer vs Direct Digital Synthesizer Infographic
