electrown.com Wavelength Division Multiplexing (WDM) and Frequency Division Multiplexing (FDM) are both techniques used to transmit multiple signals simultaneously over a single communication channel by dividing the bandwidth into separate segments, but WDM specifically applies to optical fiber communications using different light wavelengths, while FDM is commonly used in radio and telephony systems by dividing the frequency spectrum. Explore the rest of the article to understand how each method impacts your network's efficiency and performance.
Table of Comparison
| Aspect | Wavelength Division Multiplexing (WDM) | Frequency Division Multiplexing (FDM) |
|---|---|---|
| Definition | Multiplexing technique using different light wavelengths to transmit data simultaneously over a single optical fiber. | Multiplexing technique using separate frequency bands to transmit multiple signals over a single communication channel. |
| Medium | Optical fiber | Radio, wired cables, optical fiber (less common) |
| Signal Type | Light wavelengths | Electrical or electromagnetic frequency bands |
| Bandwidth Efficiency | High - supports multiple channels at very high data rates | Moderate - limited by frequency band allocation and interference |
| Applications | Telecommunications, fiber optic networks, data centers | Radio broadcasting, TV transmission, telephony |
| Complexity | Higher due to precise wavelength control and optical components | Lower hardware complexity, easier implementation |
| Scalability | Highly scalable by adding wavelengths | Limited by available frequency spectrum |
| Interference | Minimal due to narrow wavelength separation | Potential interference and cross-talk between adjacent frequency bands |
| Cost | Higher initial investment for optical components | Generally lower cost equipment |
Introduction to Multiplexing Techniques
Multiplexing techniques enable the simultaneous transmission of multiple signals over a single communication channel, enhancing bandwidth efficiency and reducing infrastructure costs. Wavelength Division Multiplexing (WDM) splits optical signals into distinct wavelengths, allowing numerous data streams to coexist in fiber optic cables, while Frequency Division Multiplexing (FDM) allocates separate frequency bands within a communication medium for different signals. Understanding these methods helps you optimize network capacity and tailor communication systems to specific bandwidth and signal type requirements.
What is Wavelength Division Multiplexing (WDM)?
Wavelength Division Multiplexing (WDM) is a fiber-optic communication technology that transmits multiple optical signals simultaneously on a single fiber by using different wavelengths (or colors) of laser light. Each wavelength acts as an independent communication channel, enabling high data capacity and efficient bandwidth utilization in long-distance and high-speed networks. WDM contrasts with Frequency Division Multiplexing (FDM), which divides the available bandwidth into separate frequency bands for multiple signals, typically used in radio and electrical communications.
What is Frequency Division Multiplexing (FDM)?
Frequency Division Multiplexing (FDM) is a technique that divides the total available bandwidth of a communication channel into multiple frequency bands, each allocated to a separate signal or data stream. This allows simultaneous transmission of multiple signals over a single medium by modulating each signal on a different carrier frequency. FDM is widely used in traditional radio broadcasting, cable TV systems, and telecommunications to efficiently utilize spectrum and reduce interference.
Key Differences Between WDM and FDM
Wavelength Division Multiplexing (WDM) uses multiple optical carrier signals at different wavelengths to transmit data simultaneously over a single fiber, whereas Frequency Division Multiplexing (FDM) separates signals by assigning distinct frequency bands over a shared medium. WDM operates primarily in the optical domain, leveraging light wavelengths within fiber optic cables for high bandwidth and low attenuation, while FDM functions in the electrical domain across radio or coaxial channels with limited bandwidth. The key difference lies in their physical layer usage: WDM maximizes the capacity of fiber optics using different light wavelengths, whereas FDM divides the frequency spectrum for multiple users in traditional communication channels.
Advantages of Wavelength Division Multiplexing
Wavelength Division Multiplexing (WDM) offers higher bandwidth capacity by allowing multiple optical carrier signals on a single fiber, significantly increasing data transmission rates compared to Frequency Division Multiplexing (FDM) which operates in the electrical domain. WDM enables efficient utilization of fiber infrastructure with minimal interference and superior signal quality over long distances, making it ideal for high-speed telecommunications and data networks. Its scalability and compatibility with existing fiber optic technology provide a cost-effective solution for expanding network bandwidth without substantial physical upgrades.
Advantages of Frequency Division Multiplexing
Frequency Division Multiplexing (FDM) offers the advantage of simultaneous transmission of multiple signals over a single communication medium by allocating distinct frequency bands, leading to efficient bandwidth utilization. FDM provides continuous and stable signal transmission, making it ideal for analog and long-distance communication systems with minimal latency. Its straightforward implementation and compatibility with legacy systems contribute to widespread adoption in broadcasting and telecommunication networks.
Applications of WDM in Modern Networks
Wavelength Division Multiplexing (WDM) is extensively used in modern fiber-optic communication networks to increase bandwidth by transmitting multiple data channels on different light wavelengths simultaneously. It enables high-capacity data transmission in long-haul, metro, and access networks, supporting applications such as cloud computing, data center interconnects, and 5G infrastructure. Compared to Frequency Division Multiplexing (FDM), WDM offers superior scalability and efficiency in handling the growing demand for high-speed internet and large-scale data transfer.
Applications of FDM in Communication Systems
Frequency Division Multiplexing (FDM) is widely used in traditional radio and television broadcasting, enabling multiple channels to be transmitted simultaneously over a single communication medium by allocating distinct frequency bands. In telephone networks, FDM facilitates the simultaneous transmission of multiple voice calls over the same physical line, improving bandwidth utilization. Your communication system can benefit from FDM in scenarios where continuous, simultaneous signals need to be transmitted without interference, especially in analog signal processing.
Limitations and Challenges of WDM vs FDM
Wavelength Division Multiplexing (WDM) faces limitations such as the complexity of managing closely spaced optical channels and the high cost of precise wavelength stabilization equipment. Frequency Division Multiplexing (FDM) encounters challenges including limited available bandwidth due to frequency spectrum constraints and increased interference between adjacent frequency bands. Your choice between WDM and FDM should consider these factors, especially in high-capacity, long-distance communication systems where WDM's scalability offers advantages despite its technical intricacies.
Choosing the Right Multiplexing Method for Your Network
Choosing between Wavelength Division Multiplexing (WDM) and Frequency Division Multiplexing (FDM) depends on network capacity, range, and infrastructure requirements. WDM is ideal for fiber-optic networks requiring high bandwidth and minimal signal interference, utilizing different light wavelengths to transmit multiple data streams simultaneously. FDM suits lower-bandwidth, analog-based networks by dividing the available frequency spectrum into separate channels, offering cost-effective solutions for short to medium distance communications.

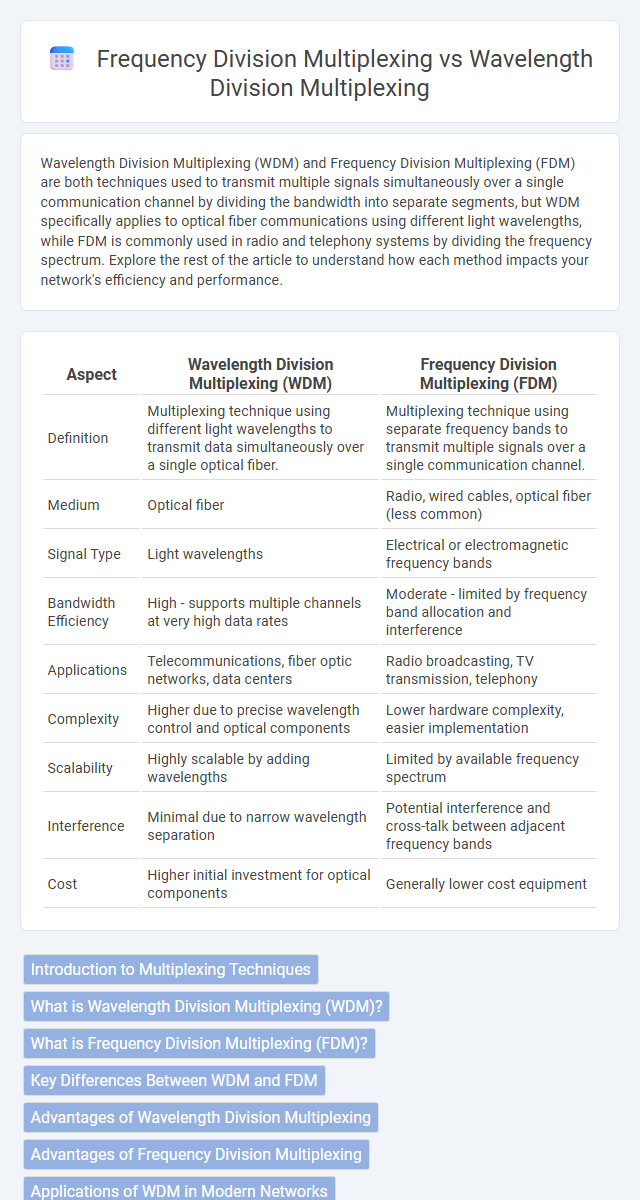

Wavelength Division Multiplexing vs Frequency Division Multiplexing Infographic
