electrown.com Phase change memory (PCM) leverages the reversible transformation between amorphous and crystalline states of chalcogenide materials to store data, offering fast read speeds and high endurance. Understanding the differences between PCM and resistive random access memory (ReRAM), which relies on resistance changes in metal oxides, can help you choose the most efficient storage technology; explore the full article to learn more.
Table of Comparison
| Feature | Phase Change Memory (PCM) | Resistive Random Access Memory (RRAM) |
|---|---|---|
| Technology | Uses chalcogenide glass that changes phase between amorphous and crystalline states | Utilizes metal-oxide or metal-insulator materials with resistive switching behavior |
| Switching Mechanism | Thermally induced phase change | Electrically induced filament formation or rupture |
| Speed | Write speed: ~50-200 ns | Write speed: <100 ns (often faster than PCM) |
| Endurance | 10^8 - 10^9 cycles | 10^8 - 10^12 cycles (higher endurance possible) |
| Data Retention | 10 years at 85degC | 10 years at 85degC (varies with materials) |
| Power Consumption | Moderate; requires heating phase change region | Low; mainly resistive switching |
| Scalability | Good scaling potential down to ~10 nm | Excellent scalability below 10 nm |
| Applications | Non-volatile memory, storage class memory, neuromorphic computing | Non-volatile memory, embedded memory, neuromorphic devices |
| Commercial Status | Available in niche products and research phase | Emerging, with pilot production and active research |
Introduction to Emerging Non-Volatile Memories
Phase change memory (PCM) and resistive random access memory (ReRAM) represent two cutting-edge non-volatile memory technologies transforming data storage with distinct mechanisms for data retention. PCM stores information by altering the physical state of chalcogenide materials between amorphous and crystalline phases, offering high scalability and fast read speeds. ReRAM uses resistive switching in metal oxide films to toggle between high and low resistance states, providing low power consumption and high endurance suitable for next-generation memory applications.
Overview of Phase Change Memory (PCM)
Phase Change Memory (PCM) utilizes the reversible transformation between amorphous and crystalline states of chalcogenide materials to store data, enabling non-volatile memory with fast read/write speeds and high endurance. PCM's ability to switch phase states via controlled heating allows precise resistance modulation for multi-level data storage, making it suitable for applications requiring high density and scalability. Compared to Resistive Random Access Memory (RRAM), PCM generally offers better data retention and endurance but may have slower write speeds and higher power consumption.
Overview of Resistive Random Access Memory (ReRAM)
Resistive Random Access Memory (ReRAM) is a non-volatile memory technology based on the resistance switching mechanism of metal oxides, offering faster write speeds and lower power consumption compared to Phase Change Memory (PCM). ReRAM stores data by changing the resistance across a dielectric solid-state material, enabling high-density storage and scalability for future memory applications. Your system can leverage ReRAM's endurance and speed advantages to enhance performance in emerging computing environments.
Working Principles: PCM vs ReRAM
Phase Change Memory (PCM) operates by altering the physical state of chalcogenide glass between amorphous and crystalline forms to represent binary data, using heat generated by electrical pulses. Resistive Random Access Memory (ReRAM) functions by changing the resistance of a metal oxide layer through the formation and disruption of conductive filaments caused by ion migration under an electric field. Understanding these distinct working principles helps you choose the most suitable non-volatile memory technology based on speed, endurance, and scalability requirements.
Materials and Device Structure Comparison
Phase change memory (PCM) utilizes chalcogenide materials such as Ge2Sb2Te5, which switch between amorphous and crystalline states to store data, whereas resistive random access memory (RRAM) typically relies on metal oxides like HfO2 or TiO2 that change resistance through filament formation and rupture. PCM devices feature a heater electrode integrated within a vertical cell structure to induce rapid thermal phase transitions, while RRAM employs a simpler metal-insulator-metal (MIM) stack allowing reversible redox reactions and ion migration. The distinct material properties lead PCM to exhibit high thermal stability and multi-level storage capabilities, whereas RRAM benefits from lower operating voltages and faster switching speeds due to its solid-state ion transport mechanism.
Performance Metrics: Speed, Endurance, and Retention
Phase Change Memory (PCM) offers faster write speeds than Resistive Random Access Memory (RRAM), typically in the range of nanoseconds, making it suitable for high-performance storage applications. PCM exhibits endurance of around 10^8 write cycles, whereas RRAM can endure up to 10^12 cycles, providing superior longevity for frequent data rewriting. In terms of data retention, PCM maintains stored information reliably for over 10 years at elevated temperatures, while RRAM retention may vary but generally supports multi-year data stability under standard conditions.
Power Consumption and Scalability
Phase change memory (PCM) typically exhibits higher power consumption due to the thermal heating required to switch phases, whereas resistive random access memory (ReRAM) operates with lower power by changing resistance states through ion movement. In terms of scalability, ReRAM demonstrates greater potential for miniaturization and high-density integration because of its simple metal-oxide-metal structure, while PCM faces challenges with thermal crosstalk and endurance at nanoscales. Both technologies offer promising non-volatile memory solutions, but ReRAM's lower power profile and superior scalability make it more suitable for next-generation high-density applications.
Applications and Use Cases
Phase change memory (PCM) excels in applications requiring high endurance and multilevel data storage, such as in embedded systems, neuromorphic computing, and non-volatile memory for consumer electronics. Resistive random access memory (ReRAM) finds extensive use in Internet of Things (IoT) devices, machine learning accelerators, and high-speed cache memory due to its low power consumption and fast switching capabilities. Both PCM and ReRAM are crucial for next-generation computing, with PCM favored in applications demanding data retention stability and ReRAM preferred for scalability and energy efficiency in edge computing.
Current Challenges and Limitations
Phase change memory (PCM) faces challenges such as high power consumption during phase transitions and limited endurance due to fatigue in the phase change material. Resistive random access memory (RRAM) struggles with variability in switching behavior and reliability issues caused by filament formation and dissolution. Both technologies encounter scaling limitations and integration difficulties with existing semiconductor processes.
Future Prospects and Industry Adoption
Phase change memory (PCM) offers high endurance and scalability with proven integration in niche storage applications, while resistive random access memory (ReRAM) excels in speed, low power consumption, and potential for neuromorphic computing. Industry adoption favors PCM in embedded systems due to maturity, but ReRAM gains traction with startups and research targeting next-generation memory solutions. Your choice depends on application priorities, as future prospects indicate expanding ReRAM commercialization alongside PCM's steady market growth.

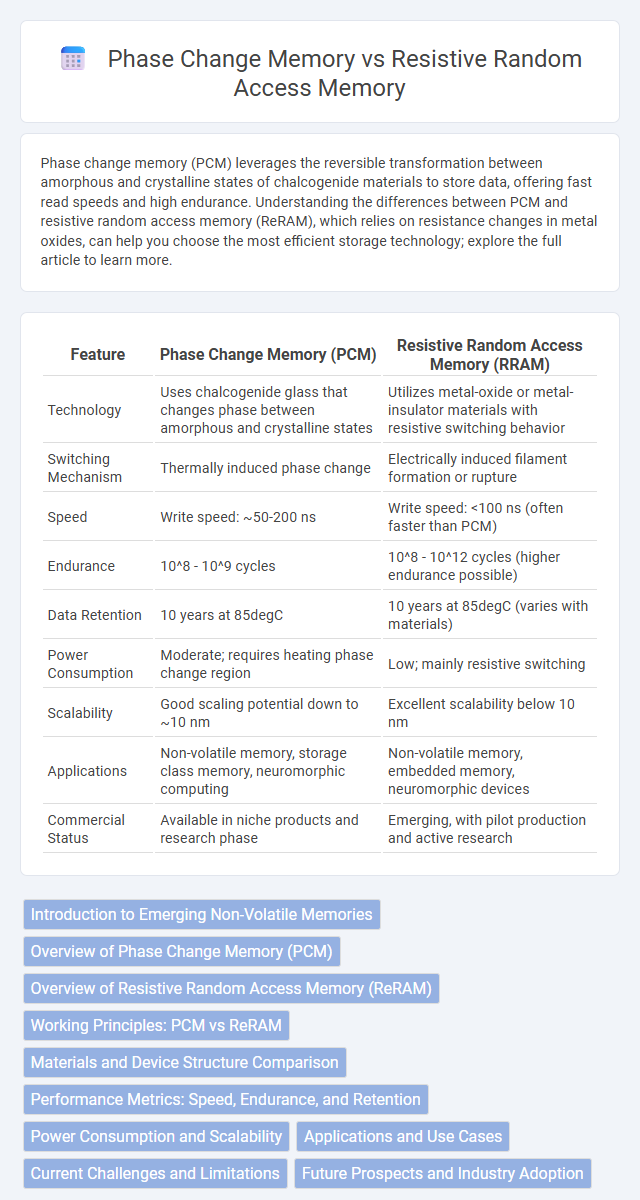

Phase change memory vs Resistive random access memory Infographic
