electrown.com Time-of-flight sensors measure distance by calculating the time it takes for a light signal to bounce back from an object, offering fast and accurate depth mapping ideal for dynamic environments. Structured light sensors project a known pattern onto a scene and analyze distortions to reconstruct 3D surfaces, providing high-resolution detailed scans perfect for precise measurements; explore the rest of the article to understand which sensor best suits your needs.
Table of Comparison
| Feature | Time-of-Flight Sensor | Structured Light Sensor |
|---|---|---|
| Technology | Measures distance by calculating the time taken for a light pulse to return | Projects a known pattern and analyzes its deformation on surfaces |
| Depth Accuracy | Moderate to high, affected by ambient light and reflectivity | High accuracy in controlled lighting conditions |
| Range | Longer range (up to several meters) | Shorter range (typically less than 1 meter) |
| Speed | Fast depth measurement, suitable for real-time applications | Slower as it requires pattern projection and analysis |
| Lighting Sensitivity | Less affected by ambient lighting | Highly sensitive to ambient light interference |
| Use Cases | Autonomous vehicles, drones, 3D mapping, gesture recognition | Facial recognition, 3D scanning, augmented reality in controlled environments |
| Cost | Generally higher due to complex hardware | Typically lower cost, simpler hardware |
Introduction to Depth Sensing Technologies
Time-of-flight (ToF) sensors measure depth by calculating the time taken for emitted infrared light to reflect back from objects, offering precise distance data and fast response times. Structured light sensors project a known infrared pattern onto a scene and analyze the deformation of the pattern to determine depth, providing high-resolution 3D images with detailed surface information. Both technologies are widely used in applications like gesture recognition, facial scanning, and augmented reality due to their ability to capture accurate 3D spatial data.
Overview of Time-of-Flight Sensors
Time-of-Flight (ToF) sensors measure distance by calculating the time it takes for emitted infrared light to reflect back from an object, enabling precise depth mapping in real-time applications like 3D scanning and augmented reality. These sensors offer fast data acquisition with high accuracy and can perform effectively over longer ranges compared to Structured Light sensors, which rely on projecting and analyzing a known light pattern for depth information. ToF technology excels in diverse lighting conditions and dynamic environments due to its active illumination and direct time measurement approach.
Fundamentals of Structured Light Sensors
Structured light sensors project a known pattern of light onto a surface and capture the deformation of the pattern with a camera to calculate depth information accurately. These sensors excel in detailed 3D scanning and object recognition by analyzing the precise distortion of the structured illumination. Your applications benefit from high-resolution depth maps generated through this technique, especially in controlled lighting environments.
Operating Principles: ToF vs Structured Light
Time-of-Flight (ToF) sensors measure the distance by calculating the travel time of emitted light pulses reflected from objects, providing precise depth information with high accuracy and fast response. Structured Light sensors project a known light pattern onto a scene, capturing the deformation of this pattern on surfaces to compute depth based on triangulation principles. ToF offers real-time depth mapping in varied lighting conditions, while Structured Light excels in high-resolution 3D scanning under controlled environments due to its reliance on pattern distortion analysis.
Accuracy and Depth Resolution Comparison
Time-of-flight sensors deliver higher accuracy and better depth resolution by measuring the precise time it takes for light to reflect from objects, making them ideal for long-range applications with minimal noise. Structured light sensors, while often providing finer detail in controlled environments, can struggle with accuracy due to sensitivity to ambient lighting and surface textures. Your choice between these sensors should consider the required precision and environmental conditions to optimize depth sensing performance.
Performance in Various Lighting Conditions
Time-of-flight (ToF) sensors excel in diverse lighting conditions by emitting their own infrared light pulse, enabling accurate depth measurement even in bright sunlight or low-light environments. Structured light sensors rely on projecting a known pattern onto a surface and analyzing distortions, which can be significantly disrupted by ambient lighting or reflective surfaces, reducing performance in outdoor or highly dynamic lighting. ToF technology offers more consistent depth accuracy across varied indoor and outdoor scenarios, making it preferable for applications requiring robust performance under fluctuating illumination.
Power Consumption and Efficiency
Time-of-flight (ToF) sensors generally consume more power than structured light sensors due to their active illumination and fast processing requirements for precise distance measurement. Structured light sensors operate with lower power by projecting a known pattern and analyzing deformation, which involves less continuous light emission and computational load. Efficiency in ToF sensors is optimal for dynamic, long-range depth sensing, whereas structured light sensors excel in low-power, short-range applications with high spatial resolution.
Applications and Use Cases
Time-of-flight (ToF) sensors excel in applications requiring accurate depth measurement such as autonomous vehicles, robotics, and industrial automation, offering real-time 3D mapping and obstacle detection even in low-light conditions. Structured light sensors are widely used in facial recognition, gesture control, and 3D scanning, providing high-resolution surface detail ideal for biometric security and augmented reality systems. Both technologies enhance spatial awareness but differ in range and precision, with ToF sensors better suited for long-distance depth sensing and structured light optimized for detailed, short-range surface modeling.
Limitations and Challenges of Each Technology
Time-of-flight sensors face challenges such as susceptibility to ambient light interference and reduced accuracy over long distances, impacting your device's depth perception in bright environments. Structured light sensors struggle with reflective or transparent surfaces, causing distortions and inaccuracies in 3D scanning. Both technologies require careful calibration and environmental considerations to optimize performance in real-world applications.
Future Trends in 3D Sensing Systems
Time-of-flight sensors leverage precise light pulse measurements to create accurate depth maps, while structured light sensors project known patterns to capture 3D shapes with high resolution. Future trends in 3D sensing systems indicate increasing integration of AI algorithms to enhance real-time processing and environmental adaptability for both technologies. Your devices will benefit from improved sensor fusion, miniaturization, and energy efficiency, driving advancements in AR, robotics, and autonomous navigation.

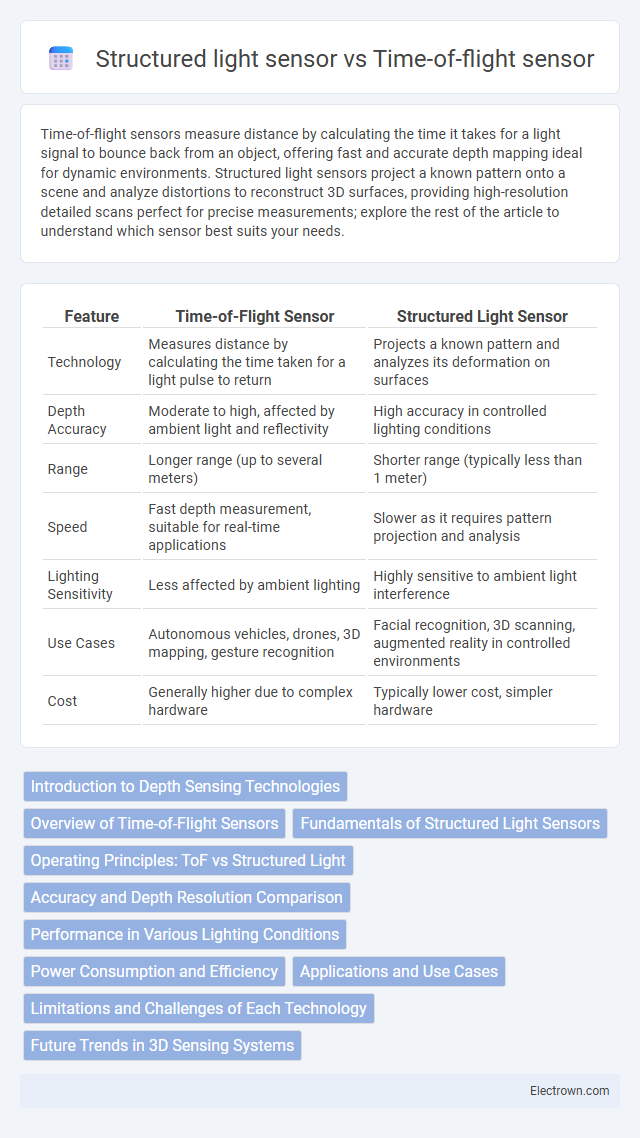

Time-of-flight sensor vs Structured light sensor Infographic
