electrown.com LC oscillators, relying on inductors and capacitors, offer tunability and generate oscillations over a broad frequency range but often suffer from lower frequency stability compared to crystal oscillators, which use quartz crystals to provide highly stable, precise frequencies ideal for timing applications. Explore the rest of this article to understand how choosing between LC and crystal oscillators can impact your circuit's performance.
Table of Comparison
| Feature | LC Oscillator | Crystal Oscillator |
|---|---|---|
| Frequency Stability | Moderate, affected by temperature and component variation | High, extremely stable due to quartz crystal resonance |
| Frequency Range | Wide frequency range, typically MHz to GHz | Narrow frequency range, fixed by crystal cut |
| Q Factor (Quality Factor) | Low to moderate Q factor (~10-100) | Very high Q factor (~10,000 - 100,000) |
| Phase Noise | Higher phase noise due to low Q | Low phase noise, suitable for precise timing |
| Cost | Lower cost, simpler components | Higher cost due to precision crystal |
| Temperature Sensitivity | High sensitivity; requires compensation | Low sensitivity; can be temperature compensated |
| Applications | Radio transmitters, tunable oscillators | Clocks, microcontrollers, precision timekeeping |
Introduction to LC Oscillators and Crystal Oscillators
LC oscillators generate stable sinusoidal signals using inductors and capacitors forming a resonant tank circuit, ideal for applications requiring tunable frequencies. Crystal oscillators utilize piezoelectric quartz crystals to achieve highly precise and stable frequencies, making them essential for timekeeping and communication systems. Your choice between these oscillators depends on the desired frequency stability and application accuracy requirements.
Fundamental Principles of LC Oscillators
LC oscillators generate continuous wave signals by utilizing an inductor (L) and capacitor (C) to create a resonant tank circuit that determines the oscillation frequency. The energy in the LC circuit oscillates between the magnetic field of the inductor and the electric field of the capacitor, producing sinusoidal output. Frequency stability in LC oscillators depends on component quality and circuit design but is generally lower compared to crystal oscillators, which use the piezoelectric effect in quartz for highly precise frequency control.
Working Mechanism of Crystal Oscillators
Crystal oscillators operate based on the piezoelectric effect, where a quartz crystal resonates at a precise frequency when an electric field is applied. The crystal's mechanical vibrations generate a stable oscillation signal with minimal frequency drift compared to LC oscillators, which use inductors and capacitors to determine oscillation frequency. This inherent frequency stability and high Q factor make crystal oscillators ideal for applications requiring accurate timing and frequency control.
Frequency Stability Comparison
LC oscillators typically exhibit lower frequency stability due to their reliance on inductors and capacitors, which are sensitive to temperature variations and component tolerances. Crystal oscillators utilize quartz crystals with precise mechanical resonance, providing superior frequency stability often in the range of parts per million (ppm) or better. Your choice for applications demanding high accuracy and minimal frequency drift should favor crystal oscillators over LC oscillators.
Accuracy and Precision Differences
LC oscillators exhibit moderate accuracy and precision due to component tolerances and variations in inductance and capacitance. Crystal oscillators deliver superior accuracy and high precision by utilizing the stable mechanical resonance of quartz crystals, maintaining frequency stability over temperature and time. Your designs benefit from crystal oscillators when demanding precise frequency control is critical.
Circuit Complexity and Design Considerations
LC oscillators feature simpler circuit designs utilizing inductors and capacitors, allowing for easier tuning but often suffer from frequency drift due to component tolerances and temperature variations. Crystal oscillators, by contrast, incorporate quartz crystals that offer high frequency stability and precision, though their circuit design is more complex, requiring careful drive level control and load capacitance matching. Design considerations for LC oscillators prioritize component quality and layout to minimize losses, whereas crystal oscillators demand stringent circuit parameters to leverage the crystal's inherent stability.
Cost and Component Availability
LC oscillators generally have lower initial costs due to the use of inductors and capacitors, which are widely available and inexpensive components. Crystal oscillators tend to be more expensive because quartz crystals are precision components with tighter frequency stability requirements. Component availability for LC oscillators is higher in general-purpose applications, while crystal oscillators rely on specialized quartz crystals that may have longer lead times and higher costs.
Applications in Modern Electronics
LC oscillators are widely used in radio frequency (RF) circuits, signal generators, and tuners due to their ability to produce variable frequencies with moderate stability and low cost. Crystal oscillators provide superior frequency stability and precision, making them essential in timekeeping devices, communication systems, and microcontroller clock signals. Your choice between an LC or crystal oscillator depends on the required frequency stability, power consumption, and cost constraints of your specific electronic application.
Advantages and Disadvantages of Each Oscillator
LC oscillators offer simplicity and low cost for generating high-frequency signals but suffer from poor frequency stability and sensitivity to temperature and component variations. Crystal oscillators provide exceptional frequency precision and stability due to the piezoelectric properties of quartz but tend to be more expensive and less effective at very high frequencies above 100 MHz. These trade-offs determine their suitability for applications requiring either cost-efficient high-frequency generation or ultra-stable timing references.
Choosing Between LC Oscillator and Crystal Oscillator
Choosing between LC oscillators and crystal oscillators depends on factors such as frequency stability, phase noise, and size requirements. LC oscillators offer flexibility and tunability over a wide frequency range but typically exhibit lower frequency stability and higher phase noise. Crystal oscillators provide superior frequency accuracy and low phase noise, making them ideal for precision applications despite limited tunability and larger size constraints.

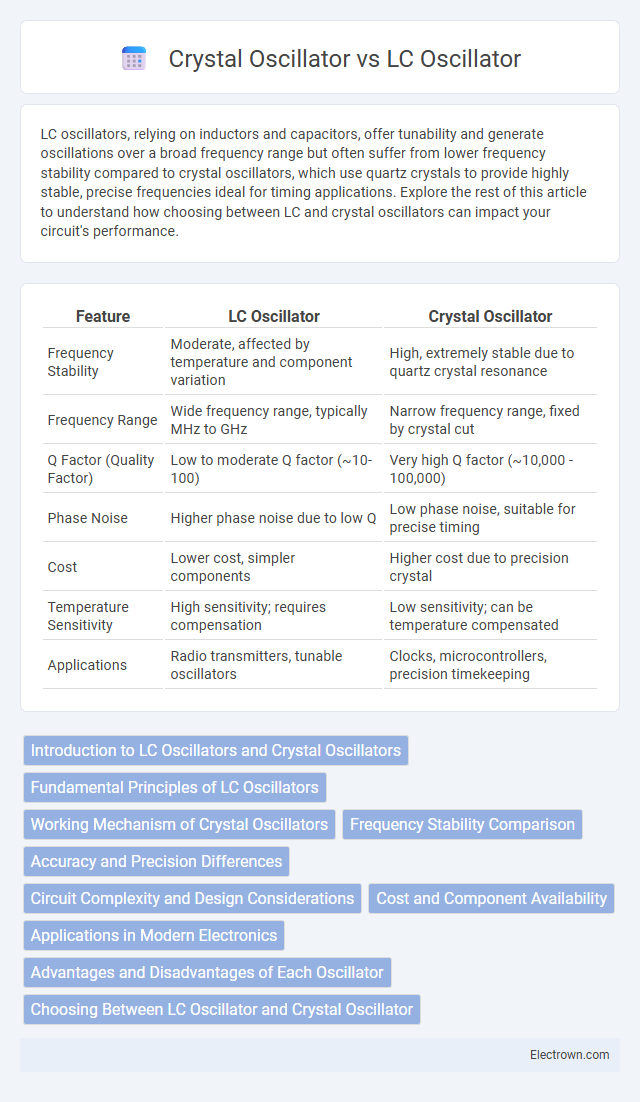

LC oscillator vs crystal oscillator Infographic
