electrown.com A noise figure meter precisely measures the noise figure of electronic devices, providing critical data for optimizing system performance, while a spectrum analyzer offers a broader frequency spectrum analysis, identifying signals, harmonics, and interference in various applications. Discover how each instrument can enhance Your testing and diagnostics by exploring the differences in this detailed comparison.
Table of Comparison
| Feature | Noise Figure Meter | Spectrum Analyzer |
|---|---|---|
| Purpose | Measures noise figure and noise factor of electronic devices | Analyzes signal spectrum, frequency, and power levels |
| Primary Measurement | Noise figure (dB), signal-to-noise ratio (SNR) | Frequency spectrum, signal amplitude, harmonic distortion |
| Frequency Range | Typically up to several GHz | Wide range from Hz to tens of GHz |
| Applications | RF component testing, amplifier noise optimization | Signal analysis, interference detection, telecommunications |
| Accuracy | High accuracy in noise figure measurement | High resolution in frequency and amplitude measurement |
| Output Type | Numerical noise figure values | Visual spectrum, spectral plots |
| Complexity | Specialized instrument, simpler interface | More complex interface and functions |
| Cost | Generally lower cost | Typically higher cost |
Introduction to Noise Figure Meter and Spectrum Analyzer
Noise figure meters measure the noise performance of electronic components by quantifying the noise figure, which indicates signal degradation in amplifiers or receivers. Spectrum analyzers display signal frequency components, allowing analysis of signal strength and interference across a frequency range. Your choice between these tools depends on whether precise noise measurement or comprehensive frequency domain analysis is required.
Core Functions: Noise Figure Meter vs Spectrum Analyzer
Noise figure meters measure the noise performance of electronic components by quantifying the noise figure or noise factor, providing critical data on signal degradation within amplifiers and receivers. Spectrum analyzers analyze the frequency spectrum of signals, identifying signal amplitude, distortion, and spurious emissions across a wide frequency range. For your testing needs, a noise figure meter precisely assesses noise contribution, while a spectrum analyzer offers comprehensive frequency domain analysis, making each instrument essential for different core functions in RF and communication system testing.
Measurement Principles and Techniques
Noise figure meters measure the noise figure of devices by injecting a known noise source and analyzing the output noise power to quantify the signal degradation caused by the device under test. Spectrum analyzers operate by capturing the signal's frequency spectrum and displaying power levels across frequencies, enabling noise measurements through signal-to-noise ratio assessments or noise floor analysis. Your choice depends on the need for precise noise figure measurement versus broader frequency domain analysis.
Frequency Range and Sensitivity Comparison
Noise figure meters typically operate within a frequency range from DC up to several GHz, offering high sensitivity optimized for precise noise figure measurements essential in low-noise amplifier characterization. Spectrum analyzers cover an extensive frequency spectrum, often from a few kHz to tens of GHz, but their sensitivity is generally lower compared to noise figure meters, as they prioritize wideband signal analysis over ultra-low noise detection. The trade-off between frequency range and sensitivity defines their optimal applications, with noise figure meters excelling in low-level noise measurement and spectrum analyzers suited for broader frequency spectrum monitoring.
Key Applications in RF and Microwave Testing
Noise figure meters are specialized instruments primarily used for accurately measuring the noise figure and gain of RF and microwave components such as amplifiers, mixers, and receivers, which is critical in optimizing low-noise design performance. Spectrum analyzers are versatile tools employed to visualize signal spectra, identify spurious emissions, harmonics, and intermodulation distortion, and perform general spectral analysis across a wide frequency range in RF and microwave testing. While noise figure meters focus on quantifying noise performance metrics essential for communication system sensitivity, spectrum analyzers provide comprehensive frequency domain analysis crucial for signal integrity and interference troubleshooting.
Accuracy and Calibration Differences
Noise figure meters provide high accuracy measurements specifically for noise figure by using built-in precision calibration standards and dedicated noise sources, ensuring reliable and repeatable results. Spectrum analyzers offer broader frequency analysis capabilities but typically require external calibration and display lower accuracy for noise figure measurements due to limited noise-specific calibration features. Your choice depends on whether precise noise figure accuracy and calibration are critical for your testing needs.
Advantages and Limitations of Each Instrument
Noise figure meters provide precise measurements of a device's noise figure, offering high accuracy and resolution critical for characterizing low-noise amplifiers and RF components but are often limited to noise figure and gain measurements without broader signal analysis capabilities. Spectrum analyzers deliver versatile signal analysis, including frequency spectrum monitoring and signal distortion detection, yet their noise figure measurement accuracy generally falls short compared to dedicated noise figure meters due to factors like lower noise floor and calibration constraints. Selecting between the two instruments depends on the specific application requirements for precision noise performance versus comprehensive spectral diagnostics.
Practical Scenarios: When to Use Each Device
A noise figure meter is ideal for accurately measuring the noise performance of amplifiers and RF components in controlled laboratory settings, ensuring minimal signal distortion. A spectrum analyzer excels in identifying and troubleshooting signal interference, spurious emissions, and spectral purity in complex field environments. You should choose a noise figure meter when precise noise measurement is critical, while a spectrum analyzer is best for broad frequency analysis and real-time spectral monitoring.
Integration and Compatibility with Test Setups
Noise figure meters offer seamless integration with dedicated test setups due to their specialized design, providing precise noise measurements essential for amplifier and receiver characterization. Spectrum analyzers, while versatile for frequency and signal analysis, may require additional accessories or software to perform noise figure measurements accurately, which can complicate compatibility. Your choice depends on whether you prioritize streamlined noise figure testing or broader signal analysis capabilities within your existing equipment ecosystem.
Conclusion: Choosing the Right Tool for Precise Measurements
Noise figure meters provide highly accurate noise figure measurements essential for evaluating low-noise amplifiers and sensitive RF components, while spectrum analyzers offer broader frequency domain analysis with less precision in noise figure. Selecting the right tool depends on measurement priorities: use noise figure meters for detailed noise characterization and spectrum analyzers for general spectral analysis and troubleshooting. For precise noise performance evaluation in communication systems, noise figure meters deliver superior accuracy compared to spectrum analyzers.

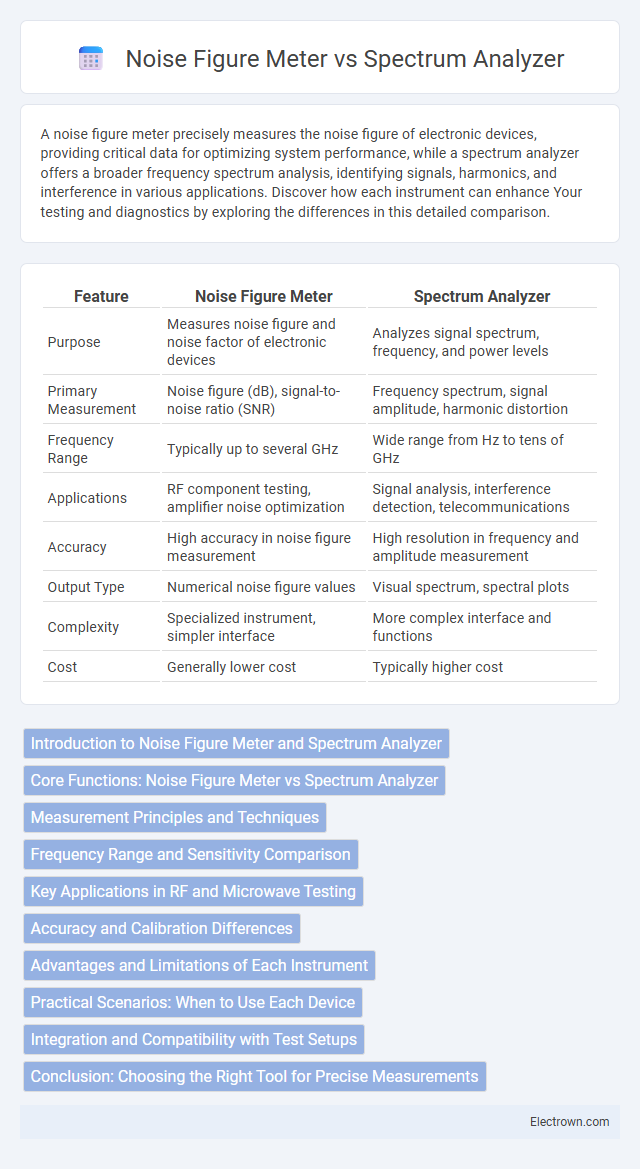

Noise figure meter vs spectrum analyzer Infographic
