electrown.com Analog RF switches offer fast switching speeds with low insertion loss and high linearity, making them ideal for traditional RF applications; MEMS RF switches, however, provide superior isolation, ultra-low power consumption, and enhanced reliability due to their microelectromechanical structure. Explore the detailed comparison to understand which switch best suits your specific wireless communication needs.
Table of Comparison
| Feature | Analog RF Switch | MEMS RF Switch |
|---|---|---|
| Switching Technology | Semiconductor-based (FET, PIN diode) | Micro-Electro-Mechanical Systems (micro-scale mechanical movement) |
| Insertion Loss | Moderate (typically 1-2 dB) | Low (as low as 0.1-0.3 dB) |
| Isolation | Moderate (20-40 dB) | High (60-80 dB) |
| Linearity | Lower (higher intermodulation distortion) | High (excellent linearity, low distortion) |
| Power Handling | Moderate (up to few watts) | High (can handle tens of watts) |
| Control Voltage | Low (typically 2-5 V) | High (up to 90 V) |
| Switching Speed | Fast (nanoseconds to microseconds) | Slower (microseconds to milliseconds) |
| Size and Integration | Compact, easily integrated in ICs | Bulkier, often discrete components |
| Reliability and Lifespan | High (solid state, millions of cycles) | Good but lower (mechanical wear, thousands to millions of cycles) |
| Cost | Lower, mature technology | Higher, specialized fabrication |
Introduction to RF Switch Technologies
Analog RF switches utilize semiconductor components like PIN diodes or FETs to control signal paths in radio frequency circuits, offering fast switching speeds and integration with traditional electronic systems. MEMS RF switches employ microelectromechanical systems to physically open or close circuits, providing superior isolation, low insertion loss, and high linearity suitable for high-frequency and low-power applications. Understanding these technologies enables you to select the optimal RF switch for applications requiring precise signal routing and minimal signal degradation.
What is an Analog RF Switch?
An Analog RF switch is a device that controls the path of radio frequency signals by physically opening or closing transmission lines, allowing seamless signal routing in communication systems. Unlike MEMS RF switches, it relies on semiconductor or mechanical relay technology, offering fast switching times and robustness for high-frequency analog signals. These switches are essential in applications such as antenna selection, signal multiplexing, and test instrumentation where minimal signal distortion and high isolation are required.
Understanding MEMS RF Switches
MEMS RF switches utilize microelectromechanical systems technology to provide superior isolation and lower insertion loss compared to traditional analog RF switches, enhancing signal integrity in high-frequency applications. These switches operate by physically moving microscopic contacts, offering excellent linearity and low power consumption, which is critical in advanced wireless communication systems. MEMS RF switches also demonstrate improved reliability and reduced parasitic capacitance, making them ideal for complex RF switching networks where precision and performance are paramount.
Key Performance Parameters: Analog vs MEMS
Analog RF switches offer fast switching speeds and low insertion loss, making them suitable for high-frequency applications, but they may exhibit higher power consumption and limited linearity compared to MEMS RF switches. MEMS RF switches excel in isolation, linearity, and power handling with minimal distortion, driven by microelectromechanical mechanisms that enhance reliability and performance in harsh environments. Your choice between analog and MEMS technology should consider parameters like switching speed, insertion loss, isolation, power handling, and linearity to match specific application requirements.
Frequency Range and Bandwidth Comparison
Analog RF switches typically operate efficiently within frequency ranges up to 6 GHz, offering moderate bandwidth suitable for many communication applications. MEMS RF switches extend this range significantly, often covering frequencies from DC up to 40 GHz or higher, providing wider bandwidth and lower insertion loss. Your choice between these technologies should consider the needed frequency range and bandwidth to optimize signal integrity and system performance.
Insertion Loss and Isolation Characteristics
Analog RF switches typically exhibit lower insertion loss, often below 1 dB, making them suitable for applications requiring minimal signal attenuation. MEMS RF switches offer superior isolation characteristics, commonly exceeding 40 dB, which significantly reduces crosstalk and improves signal integrity in high-frequency environments. The trade-off between insertion loss and isolation in these technologies impacts the choice depending on whether signal preservation or interference reduction is the priority.
Power Handling Capabilities
Analog RF switches generally offer higher power handling capabilities, often supporting up to tens of watts, making them suitable for high-power transmission applications. MEMS RF switches excel in ultra-low insertion loss and high isolation but typically have lower power handling limits, usually in the range of a few watts, which can restrict their use in high-power scenarios. You should consider your application's required power levels carefully to choose the appropriate switch technology for optimal performance.
Reliability and Lifecycle
Analog RF switches typically offer high reliability with lifecycles ranging from one million to tens of millions of cycles, making them suitable for applications requiring frequent switching. MEMS RF switches boast superior reliability with lifecycles often exceeding one billion cycles due to their microelectromechanical design, which minimizes wear and mechanical fatigue. The longer lifecycle and excellent repeatability of MEMS switches make them ideal for long-term, high-performance RF switching applications in telecommunications and aerospace.
Application Scenarios for Analog and MEMS RF Switches
Analog RF switches are widely used in traditional wireless communication systems, including mobile phones and base stations, due to their fast switching speed and low insertion loss. MEMS RF switches find application in advanced radar systems, satellite communication, and 5G infrastructure, where high linearity, low power consumption, and excellent isolation are critical. Both technologies serve different needs: analog switches excel in cost-sensitive, high-frequency tasks, while MEMS switches are preferred for precision and robustness in harsh environments.
Future Trends in RF Switch Technology
Future trends in RF switch technology emphasize the integration of MEMS RF switches for enhanced miniaturization, lower insertion loss, and improved linearity, outperforming traditional analog RF switches. MEMS devices offer superior power handling and isolation, driving their adoption in 5G, IoT, and satellite communication systems. Innovations in packaging and fabrication techniques are accelerating the scalability and cost-effectiveness of MEMS RF switches, positioning them as the preferred choice for next-generation wireless applications.

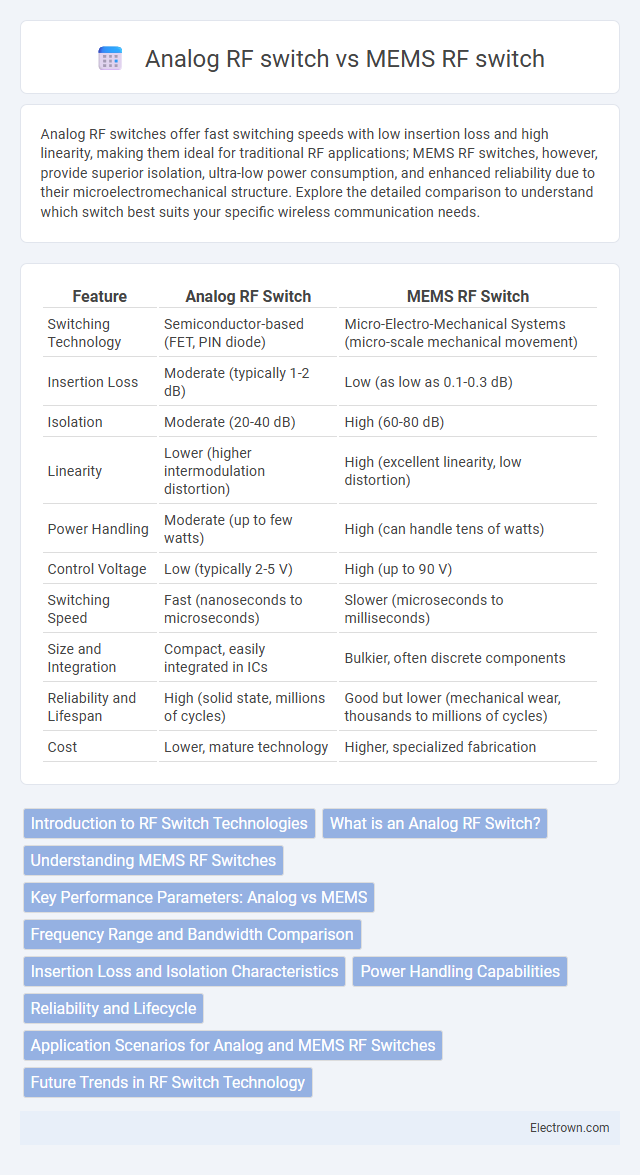

Analog RF switch vs MEMS RF switch Infographic
