electrown.com Programmable array logic (PAL) offers simpler and faster custom logic implementation with limited flexibility, while field-programmable gate arrays (FPGA) provide extensive reconfigurability and complex processing capabilities for diverse applications. Explore the rest of this article to discover which technology best suits your project needs.
Table of Comparison
| Feature | Programmable Array Logic (PAL) | Field-Programmable Gate Array (FPGA) |
|---|---|---|
| Definition | Fixed logic array programmable for implementing simple combinational logic. | Complex programmable logic device with configurable logic blocks and interconnects. |
| Complexity | Low complexity, suitable for simple functions. | High complexity, supports complex designs and multiple functions. |
| Programming | One-time programmable or limited reprogramming. | Reprogrammable multiple times via hardware description languages (HDL). |
| Logic Resources | Limited AND-OR structures. | Configurable lookup tables (LUTs), flip-flops, DSP blocks. |
| Applications | Simple logic functions, glue logic, small control units. | Complex systems like processors, digital signal processing, system-on-chip (SoC). |
| Size & Power | Smaller size and lower power consumption. | Larger size and higher power consumption due to complexity. |
| Cost | Lower cost for small volume and simple designs. | Higher cost justified for complex and scalable designs. |
Introduction to Programmable Array Logic (PAL) and Field-Programmable Gate Array (FPGA)
Programmable Array Logic (PAL) devices are simple, fixed-architecture programmable logic circuits that allow users to implement custom combinational logic functions by programming the AND gates, while the OR gates are fixed. Field-Programmable Gate Arrays (FPGAs) consist of an array of configurable logic blocks (CLBs), interconnects, and input/output blocks, enabling complex digital circuits and system designs through reprogrammable hardware configurations. PALs are ideal for small-scale logic tasks due to limited flexibility, whereas FPGAs support large-scale integration and dynamic reprogramming for advanced applications.
Architecture Overview: PAL vs FPGA
Programmable Array Logic (PAL) features a fixed OR array combined with a programmable AND array, enabling straightforward logic functions with limited complexity and faster design turnaround. In contrast, Field-Programmable Gate Arrays (FPGA) consist of an extensive matrix of configurable logic blocks (CLBs), interconnects, and embedded memory, offering high flexibility for implementing complex, high-density digital circuits. FPGAs support reprogrammability at the hardware level, which facilitates iterative design refinement and multifunctional applications compared to the one-time programmable nature of traditional PAL devices.
Key Differences Between PAL and FPGA
Programmable Array Logic (PAL) devices consist of fixed OR arrays with programmable AND arrays, offering limited logic complexity and faster programming times compared to Field-Programmable Gate Arrays (FPGAs). FPGAs feature a vast matrix of configurable logic blocks (CLBs), interconnects, and embedded modules, enabling highly complex designs with reprogrammability and extensive parallel processing capabilities. While PALs are cost-effective for simple combinational and sequential logic tasks, FPGAs support advanced applications requiring high flexibility, large-scale integration, and real-time adaptability.
Programming Technologies and Techniques
Programmable Array Logic (PAL) devices use fusible links or antifuse technology to program fixed logic functions during manufacturing or via one-time programming, offering limited flexibility. Field-Programmable Gate Arrays (FPGAs) utilize SRAM or flash-based configuration memory, enabling dynamic reprogramming and high-density logic integration with advanced routing algorithms. Your choice depends on the need for reconfigurability, complexity, and scalability in your digital design project.
Performance Comparison: Speed and Efficiency
Programmable Array Logic (PAL) devices offer faster access times due to their simpler and fixed logic structures, making them suitable for high-speed, low-complexity tasks, while Field-Programmable Gate Arrays (FPGAs) provide greater computational efficiency and parallel processing capabilities for complex designs despite slightly higher latency. FPGAs enable custom optimization through configurable logic blocks and embedded resources, which enhances overall performance in applications requiring versatility and scalability. Your choice depends on whether you prioritize raw speed with PALs or flexible, efficient performance with FPGAs.
Design Flexibility and Scalability
Programmable Array Logic (PAL) devices offer limited design flexibility due to their fixed architecture, making them suitable for simple logic functions with a predefined logic array. Field-Programmable Gate Arrays (FPGAs) provide significantly greater scalability and design flexibility, enabling complex digital circuits through reconfigurable logic blocks and interconnects. Your choice between PAL and FPGA will depend on the complexity of your application and the need for future expansion or modification.
Typical Applications of PAL and FPGA
Programmable Array Logic (PAL) devices are typically used in simple logic functions, address decoding, and small-scale combinational logic due to their fixed architecture and faster programming times. Field-Programmable Gate Arrays (FPGAs) excel in complex digital designs such as signal processing, embedded systems, and hardware prototyping because of their vast array of configurable logic blocks and reprogrammability. Your choice between PAL and FPGA depends on the complexity of your application and the level of flexibility required.
Cost and Development Considerations
Programmable Array Logic (PAL) devices typically offer lower initial costs and simpler development processes, making them suitable for small-scale or cost-sensitive applications. Field-Programmable Gate Arrays (FPGAs) provide greater flexibility and complexity, but often come with higher development expenses and require more advanced design tools and expertise. Your choice depends on balancing budget constraints against the need for scalability and functional sophistication in your project.
Advantages and Disadvantages: PAL vs FPGA
Programmable Array Logic (PAL) devices offer simplicity, faster programming times, and lower cost for small-scale, fixed logic functions but are limited by their smaller array size and lack of reconfigurability. Field-Programmable Gate Arrays (FPGA) provide a highly flexible and reconfigurable logic platform with greater complexity and parallel processing capabilities, making them suitable for complex, evolving designs; however, FPGAs often have higher costs, longer development cycles, and increased power consumption. Your choice depends on whether you prioritize cost-efficiency and speed for simpler tasks (PAL) or adaptability and scalability for complex applications (FPGA).
Choosing Between PAL and FPGA for Your Project
When choosing between Programmable Array Logic (PAL) and Field-Programmable Gate Array (FPGA) for your project, consider that PAL devices offer simpler, fixed logic arrays ideal for small-scale applications and faster development cycles. FPGAs provide extensive reconfigurability with millions of logic gates, making them suitable for complex digital designs, high-speed processing, and scalability. Cost, design complexity, and required computational power are key factors influencing the selection of PAL versus FPGA technology.

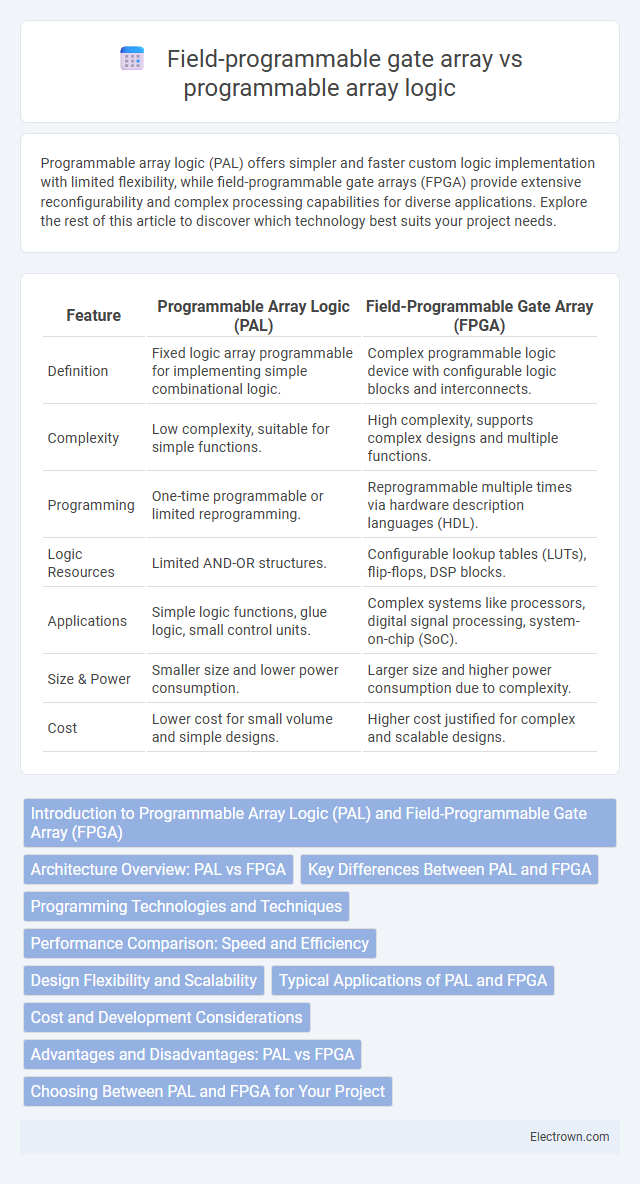

Programmable array logic vs field-programmable gate array Infographic
