electrown.com Reverse recovery time measures how quickly a diode stops conducting after reverse voltage is applied, while forward recovery time gauges how fast a diode reaches full conduction when forward voltage is applied. Understanding these characteristics helps optimize your circuit's switching performance; continue reading to explore their impacts in detail.
Table of Comparison
| Aspect | Reverse Recovery | Forward Recovery |
|---|---|---|
| Definition | Time taken for a diode to stop conducting after switching from forward to reverse bias | Time required for a diode to start conducting after switching from reverse to forward bias |
| Event | Turning off (reverse biasing) the diode | Turning on (forward biasing) the diode |
| Charge Removal | Removal of stored minority carriers from junction | Injection of carriers across the junction |
| Impact on Circuit | Generates reverse recovery current and power loss | Determines delay before conduction starts |
| Typical Duration | Nanoseconds to microseconds depending on diode type | Nanoseconds to microseconds depending on diode type |
| Key Parameter | Reverse recovery time (trr) | Forward recovery time |
| Relevance | Important in switching applications to reduce losses and EMI | Important for delay-sensitive applications and accurate timing |
Introduction to Diode Recovery Mechanisms
Diode recovery mechanisms include reverse recovery, where the diode switches from conducting to blocking state, and forward recovery, where the diode transitions into conduction after being off. Reverse recovery involves the removal of stored charge carriers, causing a temporary reverse current that affects switching speed and power loss. Forward recovery relates to the time delay before the diode reaches full conduction, influencing the initial voltage drop and efficiency in power circuits.
Understanding Reverse Recovery
Reverse recovery in diodes refers to the time interval when a diode switches from conducting forward current to blocking reverse current, characterized by the discharge of stored charge carriers. This phenomenon affects switching speed and power loss in high-frequency applications, making it critical to optimize for efficient circuit performance. In contrast, forward recovery time is the delay when a diode transitions from blocking reverse voltage to conducting forward current.
Forward Recovery: Definition and Process
Forward recovery refers to the ability of a semiconductor diode to transition from the off-state to the on-state by allowing current flow once the forward voltage exceeds the threshold. This process involves overcoming the built-in potential barrier, enabling charge carriers to cross the junction and establish conduction. Key parameters include forward voltage drop and conduction time, which impact efficiency and switching speed in power electronic applications.
Key Differences Between Reverse and Forward Recovery
Reverse recovery refers to the time and charge required for a diode to switch from conducting in the forward direction to blocking in the reverse direction, impacting switching speed and power loss. Forward recovery is the initial voltage spike and current delay experienced when the diode transitions from an off-state to full conduction under forward bias. Key differences include the direction of current flow change, impact on circuit timing, and the distinct voltage and charge characteristics influencing diode switching performance.
Impact of Recovery Times on Circuit Performance
Reverse recovery time in diodes significantly affects switching losses and electromagnetic interference, causing slower transitions and increased power dissipation in high-frequency circuits. Forward recovery time, although shorter, influences the delay in reaching stable forward conduction, impacting signal timing and transient response in fast-switching applications. Optimizing both recovery times is crucial for enhancing efficiency and reliability in power electronics and high-speed rectification systems.
Factors Affecting Reverse and Forward Recovery
Factors affecting reverse recovery include diode junction capacitance, carrier lifetime, and the rate of current change (di/dt), which influence the duration and magnitude of reverse recovery current. Forward recovery is impacted by semiconductor material properties, contact resistance, and junction temperature, determining the voltage overshoot and power dissipation during switching. Both reverse and forward recovery characteristics significantly affect the efficiency and switching speed of power electronic devices in applications such as rectifiers and inverters.
Measurement Techniques for Recovery Times
Measurement techniques for reverse recovery and forward recovery times rely on high-speed oscilloscopes capturing transient current and voltage waveforms during diode switching events. Specialized test circuits apply a sudden change in voltage or current, enabling precise detection of recovery intervals via analysis of waveform tail or overshoot characteristics. Advanced methods incorporate curve fitting and digital signal processing to enhance accuracy in determining reverse recovery time (trr) and forward recovery time (tfr), essential for optimizing power semiconductor performance in switching applications.
Applications Requiring Fast Recovery Diodes
Fast recovery diodes are essential in high-frequency switching power supplies, motor drives, and RF applications where rapid transition from conducting to blocking state minimizes switching losses and improves efficiency. Reverse recovery time directly impacts performance in circuits like DC-DC converters and inverters, making diodes with low reverse recovery time critical for maintaining signal integrity and reducing electromagnetic interference. Forward recovery characteristics influence conduction losses and switching behavior, but are less critical than reverse recovery in applications demanding fast recovery diodes.
Mitigating Recovery Losses in Electronic Circuits
Mitigating recovery losses in electronic circuits involves understanding the distinctions between reverse recovery and forward recovery in diodes and transistors. Reverse recovery loss occurs when a diode turns off and must remove stored charge, causing a transient current that increases power dissipation, while forward recovery loss appears when a device switches on and voltage lags current, contributing to inefficiency. Techniques like using fast recovery diodes, Schottky diodes, and soft-recovery devices reduce reverse recovery time and charge, whereas optimizing gate drive circuits and device switching speeds help minimize forward recovery losses, enhancing overall circuit efficiency.
Future Trends in Diode Recovery Technologies
Future trends in diode recovery technologies emphasize minimizing reverse recovery time and forward recovery voltage to enhance switching efficiency and reduce power losses in high-speed applications. Advances in materials like silicon carbide (SiC) and gallium nitride (GaN) enable superior reverse recovery characteristics compared to traditional silicon diodes, improving performance in electric vehicles and renewable energy systems. Your choice of diode technology will significantly impact system efficiency as research focuses on optimizing recovery behaviors for next-generation power electronics.

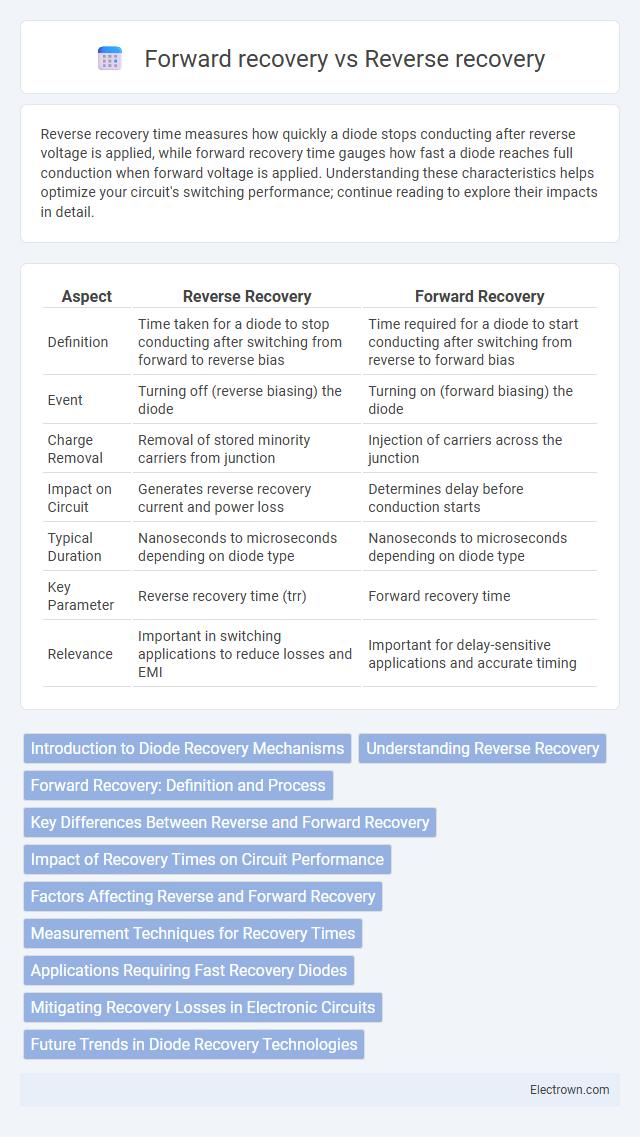

Reverse recovery vs Forward recovery Infographic
