electrown.com Open Collector and Open Drain outputs both serve as wiring methods for digital circuits, with Open Collector used in bipolar transistor technology and Open Drain in MOSFET technology, allowing multiple outputs to be connected to a single line for wired-AND logic. Explore the article to understand the differences in voltage levels, pull-up resistor requirements, and application scenarios to optimize Your circuit design.
Table of Comparison
| Feature | Open Collector Output | Open Drain Output |
|---|---|---|
| Technology | Bipolar Junction Transistor (BJT) | Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) |
| Output Stage | Collector is exposed; output transistor collector pin is open | Drain is exposed; output transistor drain pin is open |
| Voltage Levels | Typically operates at lower voltages; requires pull-up resistor | Supports a wider voltage range; requires pull-up resistor |
| Speed | Slower switching due to BJT characteristics | Faster switching; preferred for high-speed applications |
| Power Consumption | Higher power dissipation under load | Lower power dissipation |
| Common Applications | Legacy or low-frequency digital circuits | Modern microcontrollers, I2C bus, high-speed logic level shifting |
| Input Impedance | Lower input impedance | Higher input impedance |
| Typical Pull-up Configuration | External resistor to positive voltage supply | External resistor to positive voltage supply |
Understanding Open Collector and Open Drain Outputs
Open Collector and Open Drain outputs are types of transistor output stages used in digital circuits to allow multiple devices to share a common connection line safely. Open Collector outputs use bipolar junction transistors (BJTs) that pull the line to ground when active, while Open Drain outputs utilize MOSFET transistors functioning similarly by connecting the line to ground when switched on. Both configurations require external pull-up resistors to achieve logic high levels, enabling wired-AND connections and facilitating communication protocols like I2C and interrupt lines.
Key Differences Between Open Collector and Open Drain
Open Collector and Open Drain outputs both function as transistor-based switches that pull the output line to ground but differ mainly in technology and voltage compatibility; Open Collector uses bipolar junction transistors (BJTs) suited for TTL logic levels, while Open Drain employs MOSFETs optimized for a wider range of voltages including CMOS. Open Collector typically operates at lower voltages (5V logic), whereas Open Drain supports higher voltage levels and is common in I2C communication and other protocols requiring bidirectional lines. Your choice depends on compatibility with your circuit's voltage levels and required transistor technology for optimal performance in signal switching and line driving.
How Open Collector Outputs Work
Open Collector outputs work by using a transistor to pull the output line to ground when activated, allowing external devices to pull the line high through a separate power source. This configuration enables multiple devices to share the same connection point without causing electrical conflicts, making it ideal for wired-AND logic implementations. Your system can benefit from this setup by simplifying circuit design and increasing flexibility in interfacing different voltage levels.
How Open Drain Outputs Work
Open drain outputs function by connecting the output transistor's drain terminal to the output pin, allowing it to either pull the line low or leave it floating, which requires an external pull-up resistor to define the high state. This configuration enables multiple devices to share the same line for wired-AND logic without causing damage through contention. You can use open drain outputs for communication protocols like I2C, where devices communicate safely over a shared bus.
Typical Applications of Open Collector Outputs
Open collector outputs are commonly used in applications requiring wired-AND logic, level shifting, and interfacing different voltage domains, such as in I2C communication buses and LED display driving. They enable multiple outputs to be connected to a single line without damage, making them ideal for alarm systems, relay control, and external device signaling. The capability to sink current rather than source it allows open collector outputs to drive loads connected to a higher voltage supply efficiently.
Common Uses for Open Drain Outputs
Open drain outputs are commonly used in communication protocols like I2C bus systems, enabling multiple devices to share a single data line without causing damage due to conflicting signals. They facilitate wired-AND logic for connecting multiple devices, allowing safe signal pull-up to a higher voltage level. This configuration is also essential in level shifting applications and power management circuits where open collector outputs cannot be directly used.
Electrical Characteristics and Circuit Design
Open Collector and Open Drain outputs both function as transistor-based switches that can only pull the output line to ground, requiring an external pull-up resistor to achieve a high voltage level. Open Collector outputs are typically used with bipolar junction transistors (BJTs) and have slower switching speeds and higher voltage drops, while Open Drain outputs use MOSFET transistors, offering faster switching, lower on-resistance, and better efficiency in low-voltage circuits. Understanding these electrical characteristics helps you design circuits with appropriate pull-up resistors and voltage levels to ensure reliable signal communication and proper interfacing.
Advantages and Limitations of Each Output Type
Open collector outputs offer the advantage of interfacing easily with different voltage levels and allow wired-AND configurations but require an external pull-up resistor and cannot actively drive high signals. Open drain outputs serve similar functions in MOSFET-based devices, providing level shifting and multiple device interfacing but also depend on pull-up resistors and exhibit slower rise times. Both output types excel in fault-tolerant signaling and bus communication yet face limitations in speed and the inability to source current actively.
Choosing Between Open Collector and Open Drain
Choosing between open collector and open drain output depends on the type of semiconductor used; open collector utilizes bipolar junction transistors (BJTs) while open drain employs metal-oxide-semiconductor field-effect transistors (MOSFETs). Open drain outputs are preferred in low-voltage, high-speed applications due to faster switching and lower power dissipation, whereas open collector outputs excel in higher voltage environments and offer robust current sinking capabilities. Consider the supply voltage, switching speed requirements, and compatibility with existing circuit components when selecting between open collector versus open drain configurations.
Practical Examples and Circuit Schematics
Open Collector outputs are commonly used in TTL circuits for wired-AND configurations, where multiple outputs share a single line with an external pull-up resistor, such as in I2C bus systems. Open Drain outputs, often found in MOSFET-based devices, serve a similar purpose but are optimized for lower voltage operations, frequently utilized in SPI communication or GPIO pin designs on microcontrollers. Circuit schematics typically show an NPN transistor with the collector as the output node in open collector designs, whereas open drain configurations feature an NMOS transistor with the drain as the output terminal, both requiring external pull-up components to define logic high states.

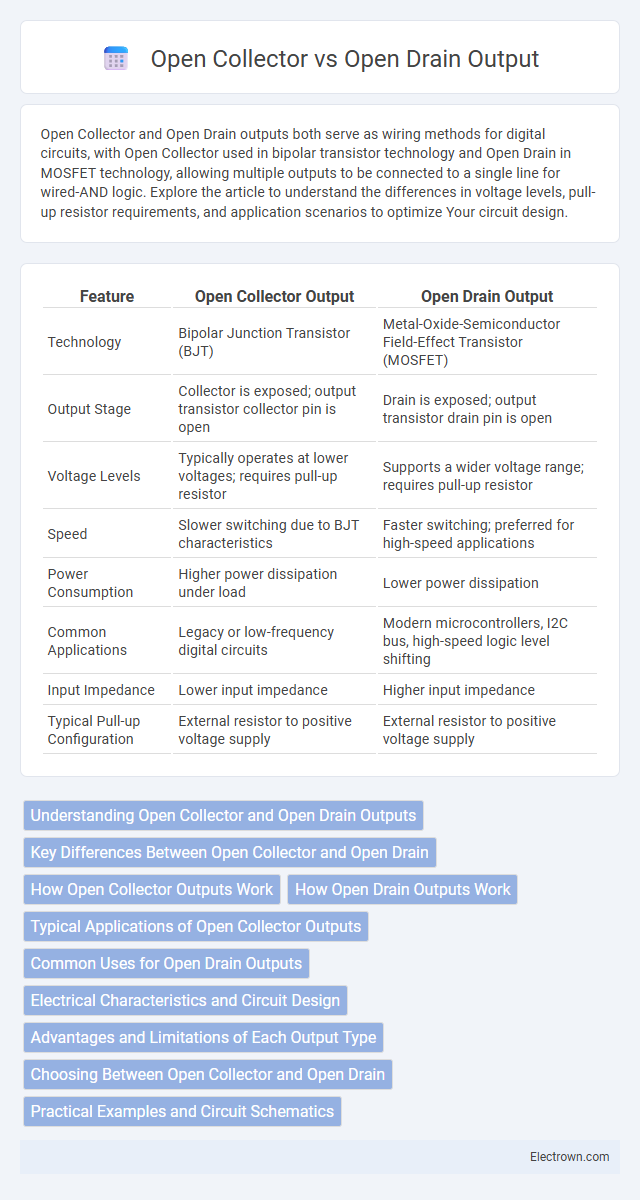

Open Collector vs Open Drain Output Infographic
