electrown.com Tunnel junctions rely on quantum tunneling across an insulating barrier between two conductors, allowing electron flow without physical contact, while single electron tunneling controls the movement of individual electrons through a small conducting island, enabling ultra-sensitive electronic devices. Explore the rest of the article to understand how these phenomena differ and their practical applications in nanoscale technology for your next project.
Table of Comparison
| Feature | Tunnel Junction | Single Electron Tunneling (SET) |
|---|---|---|
| Definition | A thin insulating barrier between two conductors allowing quantum tunneling of electrons. | Electron transport mechanism where electrons tunnel one by one through a small island. |
| Operating Principle | Electron tunneling based on quantum mechanical barrier penetration. | Controlled tunneling influenced by Coulomb blockade and charging energy. |
| Key Component | Two conductors separated by an ultra-thin insulator. | Small conductive island connected by tunnel junctions. |
| Characteristic Scale | Nanometer-scale insulating barrier. | Nanometer-scale island and tunnel barriers with low capacitance. |
| Applications | Superconducting qubits, tunnel diodes, magnetic sensors. | Single-electron transistors, ultra-sensitive electrometers, quantum computing. |
| Conductance Behavior | Continuous current flow with tunneling probability determining conductance. | Discrete electron tunneling events leading to quantized conductance steps. |
| Temperature Sensitivity | Operates at various temperatures, often higher than SET devices. | Requires very low temperatures to observe Coulomb blockade effects. |
| Complexity | Relatively simple structure with one tunneling barrier. | More complex due to multiple tunnel junctions and island control. |
Introduction to Quantum Tunneling Phenomena
Quantum tunneling phenomena arise when particles pass through energy barriers despite insufficient classical energy, a behavior central to both Tunnel Junctions and Single Electron Tunneling devices. Tunnel Junctions exploit this effect by allowing charge carriers to quantum mechanically tunnel between two electrodes separated by an insulating barrier, enabling devices like tunnel diodes and Josephson junctions. Your understanding of single electron tunneling deepens by recognizing it involves controlling electron flow through discrete energy states at the level of individual electrons, crucial for applications in quantum computing and ultra-sensitive sensors.
Defining Tunnel Junction: Structure and Function
A tunnel junction consists of two conductive electrodes separated by a thin insulating barrier, enabling electron tunneling through quantum mechanical effects. Its primary function is to allow electrons to pass between electrodes without classical conduction, widely used in devices like Josephson junctions and tunnel diodes. This structure provides fast switching capabilities and precise control of electron flow in nanoscale electronic components.
Single Electron Tunneling: Principles and Mechanisms
Single Electron Tunneling (SET) operates on the quantum principle where electrons tunnel through an insulating barrier one at a time, controlled by Coulomb blockade effects in nanoscale structures such as tunnel junctions. The fundamental mechanism involves discrete electron charge quantization and energy level confinement, enabling highly sensitive charge detection and manipulation at the single-electron level. This contrasts with conventional tunnel junctions where electron flow is continuous, lacking the quantized control inherent to SET devices.
Key Differences: Tunnel Junction vs Single Electron Tunneling
Tunnel junctions involve electron tunneling across an insulating barrier between two conductors, enabling quantum mechanical current flow without charge quantization effects. Single electron tunneling (SET) focuses on the control and manipulation of individual electrons tunneling through ultra-small capacitance junctions, exhibiting discrete charge transfer and Coulomb blockade phenomena. The key difference lies in SET's ability to control single-electron events precisely, whereas tunnel junctions generally describe collective electron tunneling without isolating single-electron charges.
Material Considerations for Tunnel Devices
Material considerations for tunnel devices are critical in both tunnel junctions and single electron tunneling setups, with insulators like aluminum oxide (Al2O3) often used as the tunneling barrier due to their excellent insulating properties and thinness at the nanoscale. Metallic electrodes such as gold, aluminum, or copper must have high conductivity and stability to ensure efficient electron transport and reliable device performance. Your choice of materials directly affects the tunneling resistance, device sensitivity, and overall operational stability, making precise material selection vital for optimizing nanoscale tunneling phenomena.
Applications of Tunnel Junctions in Modern Electronics
Tunnel junctions are critical components in modern electronics, enabling high-speed switching and memory devices such as magnetic random-access memory (MRAM) due to their ability to control electron tunneling at the nanoscale. These junctions are used in quantum dot devices and Josephson junctions for superconducting qubits, supporting advancements in quantum computing. Tunnel junctions also play a vital role in photodetectors and solar cells by enhancing charge carrier transport and improving device efficiency.
Single Electron Tunneling in Quantum Computing
Single Electron Tunneling (SET) plays a crucial role in quantum computing by enabling precise control of individual electron charges, which is essential for qubit manipulation and readout. Tunnel junctions form the fundamental components of SET devices, allowing electrons to pass through insulating barriers one at a time in a controlled manner, thus minimizing quantum decoherence. The sensitivity and scalability of SET-based quantum bits make them promising candidates for building high-fidelity, low-power quantum circuits.
Advantages and Limitations of Each Technology
Tunnel junctions offer advantages such as high-speed switching and low resistance, making them ideal for applications in magnetic memory and quantum computing, but they face limitations in scalability and operational temperature range. Single electron tunneling devices excel in ultra-low power consumption and high sensitivity, suitable for precision charge detection and nanoelectronics, yet they are limited by complex fabrication processes and susceptibility to background charge noise. Your choice between these technologies depends on the specific application requirements, balancing speed, power efficiency, and operational stability.
Recent Advances in Tunneling Device Research
Recent advances in tunneling device research emphasize enhanced control over electron transport at the nanoscale, particularly through improvements in Tunnel Junctions and Single Electron Tunneling (SET) devices. Innovations in material engineering, such as the integration of two-dimensional materials and high-quality insulating barriers, have significantly increased the precision and efficiency of electron tunneling phenomena. These developments enable ultra-low power consumption and heightened sensitivity, positioning SET devices as crucial components in quantum computing and next-generation nanoelectronics.
Future Prospects: Tunnel Junctions and Single Electron Applications
Tunnel junctions and single electron tunneling devices are poised to revolutionize future electronics by enabling ultra-low power consumption and enhanced quantum computing capabilities. Advances in nanofabrication will drive the integration of these technologies into scalable circuits, improving sensitivity and speed for applications such as single-electron transistors and quantum bits. Your exploration into these cutting-edge components can unlock potential breakthroughs in secure communication and precision sensing systems.

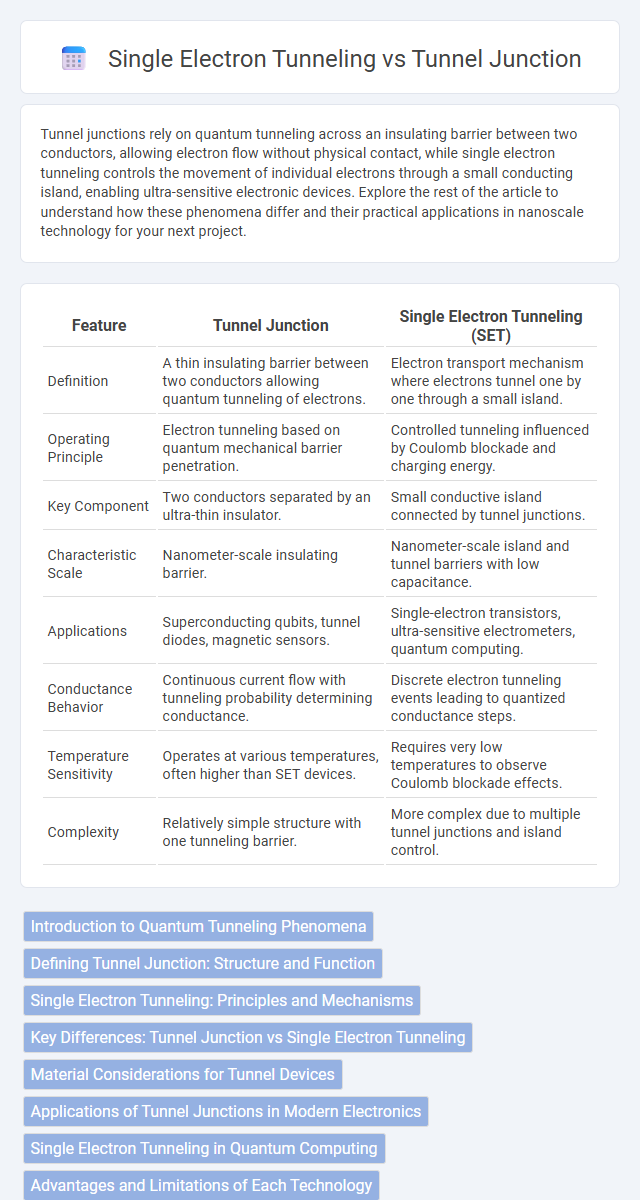

Tunnel Junction vs Single Electron Tunneling Infographic
